Up
Applications
Technical Details
1/4 Turn Size S
1/4 Turn Size M
Fast Spring Return
Linear Motion
Linear Valve











Ex Quarter Turn Actuators

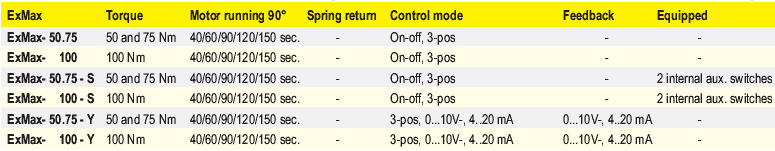

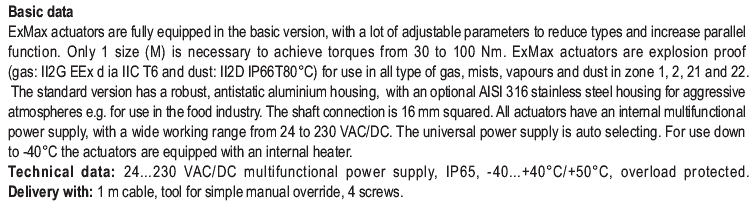

Size M

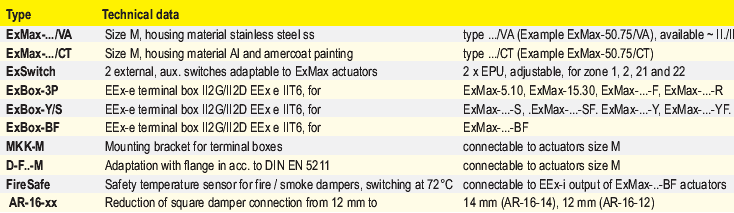

Optional Stainless Steel Housing Available  -Add ..VA to part number

Click to follow Links:    ExMax- 50.75/100/50.75-S/100-S

Click to follow Links:    ExMax- 50.75-Y & 100-Y

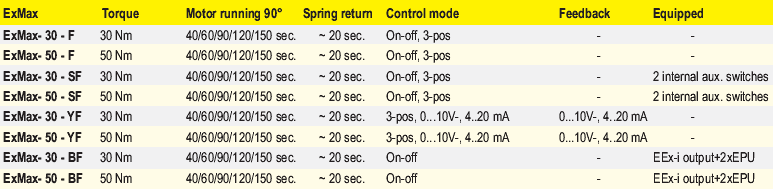

Click to follow Links:    ExMax- 30-F/50-F/30-SF/50-SF

Click to follow Links:    ExMax- 30-YF & 50-YF

Click to follow Links:    ExMax- 30-BF & 50-BF
