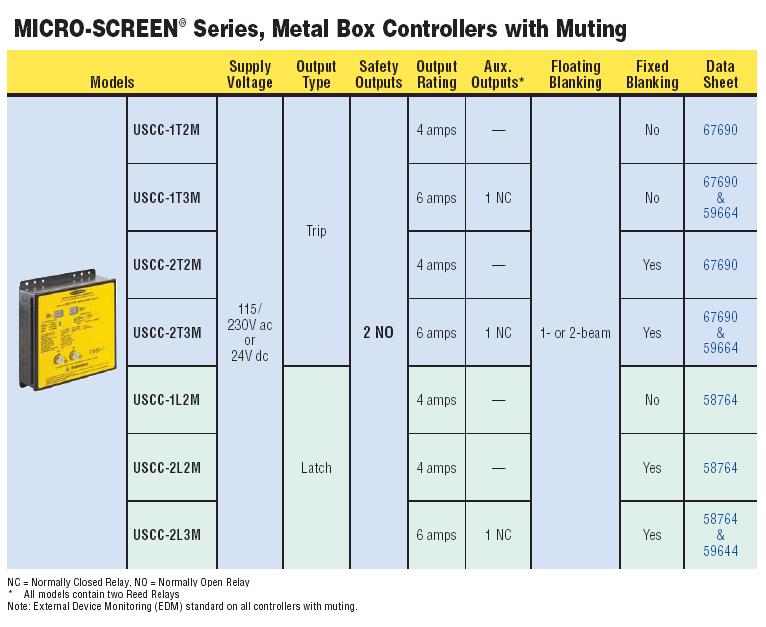

Micro-Screen Safety Light Screens

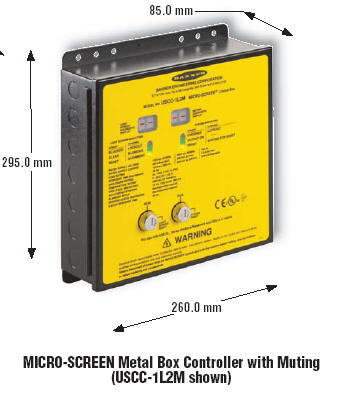

Controllers IP64 with Muting

115/230V ac or 24V dc supply voltage

One- or two-beam floating blanking and selectable power-up

Optional fixed blanking, muting and External Device Monitoring EDM)

Latch or trip output

IP64 steel enclosure with polyester finish

E-stop input

Also available without Muting Function

Click here for SPECIFICATIONS
