Ex Temperature Transmitters

(Head Mounted)

These universal 2- wire temperature transmitters are designed for mounting in the connecting head of the temperature sensor. Adjustment of the measuring range and sensor type is configured simply by P.C.. The transmitters can be supplied configured to specification or the Configuration Kit may be purchased separately. A huge range if inputs can be used and the HRT model supports Hart 5.1 Protocol. Both are certified EExia IIC T5. Rail mounted models also available.

Model Uniflex TISEX Uniflex-HRT
 Part No P 9404 202 0901 P 9404 202 09231
(unconfigured)
Input Connection 2 wire 2 wire
Inputs (Thermocouples)  Thermocouples Type J,L,T,K,R,S,B,U,E,N,C,D  Thermocouples Type J,L,T,K,R,S,B,U,E,N,C,D
Inputs (RTDs) Pt25..1000, Ni25..1000, Cu25..1000 Pt25..1000, Ni20..1000, Cu25..1000
Output 4 - 20 mA Loop Powered 4 - 20 mA Loop Powered
Process Temperature -40 degC to +85 degC -40 degC to +85 degC
Resolution Input: 15 bits (32768 steps), Output: 12 bits Input: 15 bits (32768 steps), Output: 12 bits
Conformity Error +/- 0.1% FSD +/- 0.1% FSD
IP Rating IP 55 Housing, IP10 Terminals IP 55 Housing, IP10 Terminals
Temperature Compensation Internal or at Terminals for Pt100 Internal or at Terminals for Pt 100
Protocol N/A Hart 5.1
Configuration Information Required : Internal / External Cold Junction Compensation,  Measuring Sensor Type,   Span Start (deg C),  Span End (deg C). Internal / External Cold Junction Compensation,  Measuring Sensor Type,   Span Start (deg C),  Span End (deg C).

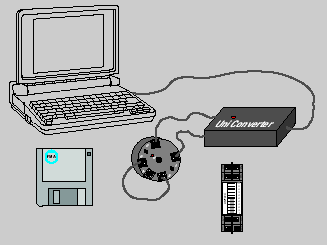

Programming Kit for P.C.

Part No 9404-202-09301

CLICK HERE TO DOWNLOAD CONFIGURATION SOFTWARE

Part Numbers:

9404 202 09031
(Unconfigured)

9404 202 09081
(Configured)



Part Numbers:


9404 202 09231
(Unconfigured)

9404 202 09281
(Configured)
