An increasing number of applications require sensors that are resistant to temperatures outside the standard range of -25 °C …+70 °C. Greater ranges can be achieved by means of suitable temperature resistant components and ingeniously designed passive cooling concepts that are internally and externally fan free. Components must be able to withstand artificial aging in the laboratory at the appropriate temperature.

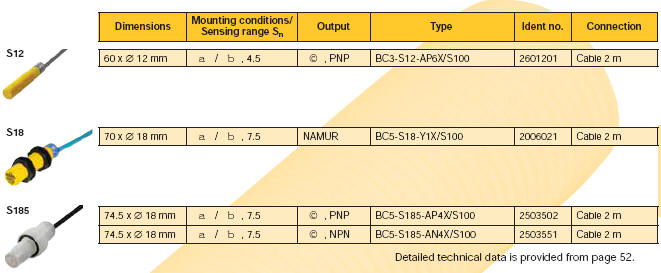

The capacitive sensors of the “high temperature” range are designed for an extended temperature range: from -25 °C...+100 °C.
