Multi-Function Indicators

More Compact than stack- lights!

Now you can display several colours with just one indicator and select their performance to display a wide variety of functions. You also get the benefit of bright LED technology and they come in a variety of styles and mounting arrangements. They must be seen to be appreciated and they provide a neat, reliable and clever solution by delivering operational information clearly and instantly from a single point.

• Completely self-contained operation—no controller
• Extremely long-lasting LED technology over 100,000
hours (11 years continuous) working life
• Very low power consumption: <1W for most DC models, <2W for AC models—compared to up to 15W
• Ergonomic, lean shape that sheds debris and moisture
• No hook hazards for moving equipment and personnel—unlike conventional stack lights
• Robust IP67/IP69K-rated, water- and oil-tight industrial housings for direct machine mounting
• Rugged, compact design that is cost-effective and easy-to-install
• Shock, vibration and impact resistant
• Compatibility with AS-i modules and fieldbus splitter boxes

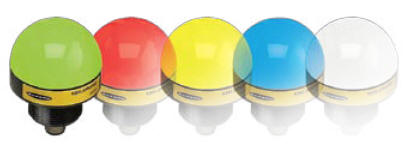

Choice of Colours (Within One Indicator!)

Choice of Styles

Housing Style
T30

M18
Functions Steady ON / Flashing ON-OFF / Alternating 3, 4 or 5 Colours
Description 50mm dome light in 80mm surface-mount housing 50mm dome light for direct mounting, bracketed or pole-top mounting 30mm T-style 18mm cylindrical
Max number of colours 5 5 3 3
Standard Colours
Power 18 to 30Vdc or
85 to 130Vac
18 to 30Vdc or
85 to 130Vac
10 to 30Vdc 10 to 30Vdc
Input dc: PNP or NPN
ac: 85 to 130V
dc: PNP or NPN
ac: 85 to 130V
PNP or NPN PNP or NPN
Connection Integral plug, pigtail with plug or terminals Integral plug, pigtail with plug or plain pigtail Integral plug, pigtail with plug or 2m integral cable Integral plug, pigtail with plug or 2m integral cable
Mounting Flat or DIN Mounting 30mm threaded base 30mm threaded nose 18mm threaded cylinder


Part Numbers

Wiring Diagrams


Brackets & Standoffs

Connectors & Cordsets
