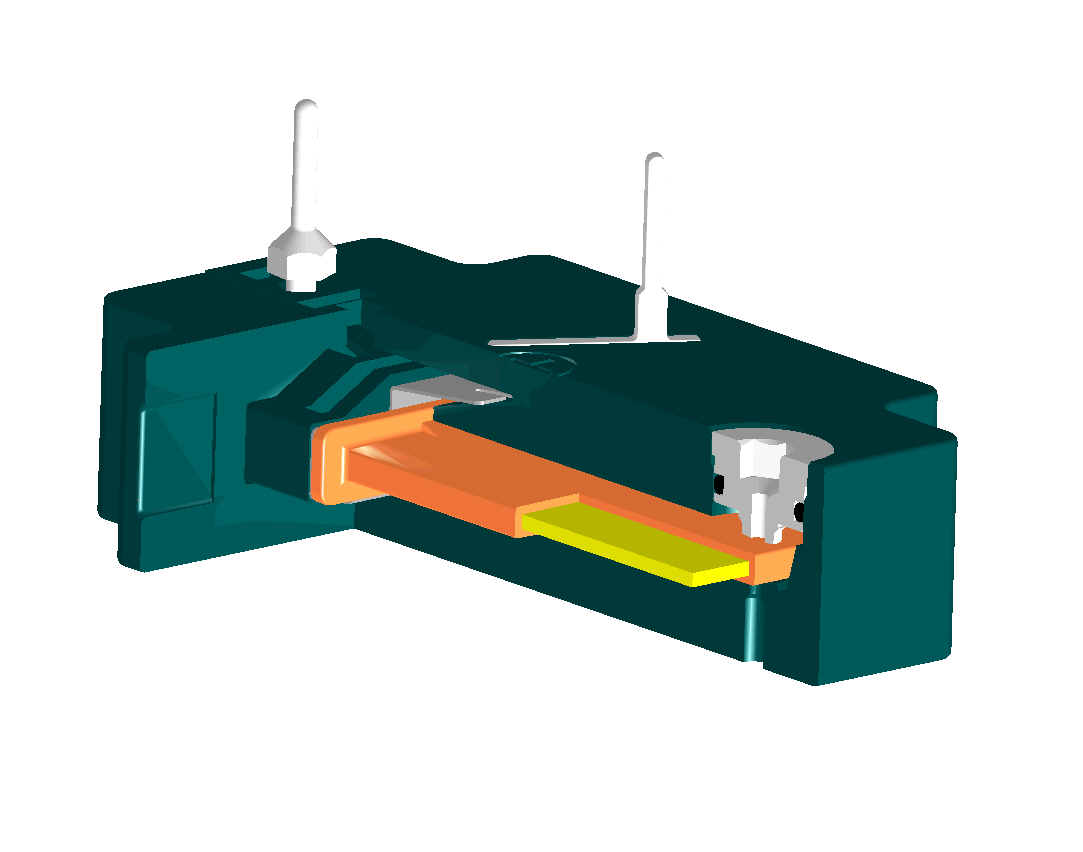

Intrinsically Safe Piezo Solenoid Valves |
 |
||
|
|
Fast operation: Switching time < 2 milliseconds Extra Low power consumption: Switching Energy 0.014mWS; Holding Energy: 0 watts Ideally suited to Fieldbus Remote I/O Systems Proven in use with Excom Remote I/O system
|
|
Poppet and Spool Valves |
| Port Size | Action | Operation | Nominal Flow | Valve Series | Part No (12Vdc Coil ) | Part No (24Vdc Coil) |
| m5 | 3/2 | Poppet | 50l/min | P8 | PS11003-550A-01 | PS11003-210A-01 |
| G1/8 | 3/2 | Poppet | 110l/mil | P20 | PS11023-551A-01 | PS11023-211A-01 |
| G1/4 | 3/2 | Spool | 1300l/min | S9 | PS13204-556A | PS13204-216A |
| G1/8 | 5/2 | Spool | 1300l/min | S9 | PS13118-556A | PS13118-216A |
| G1/4 | 5/2 | Spool | 1300l/min | S9 | PS13210-556A | PS13210-216A |

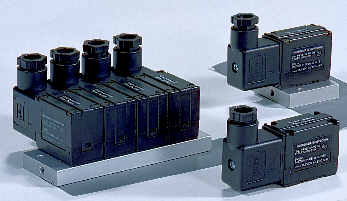

P8 Series |
P20 Series
|
S9 Series
|
|

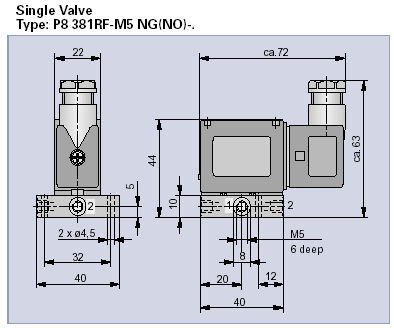

Single Valve
|

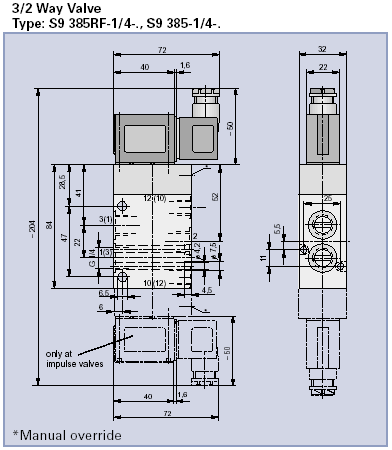

3/2 Way Valve
|
|

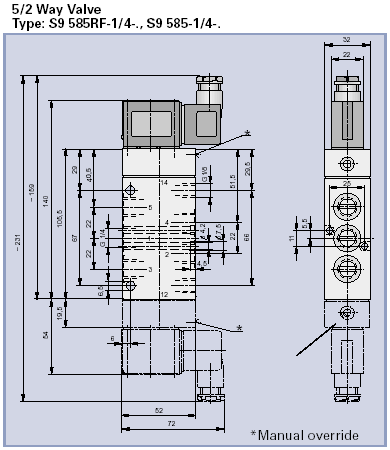

5/2 Way Valve
|
|
Spool valve with ISO 5599 sizes 1, 2, & 3 |
| Port Size | Action | Operation | Nominal Flow | Valve Series | 12Vdc Coil | 24Vdc Coil |
| 5599/1 | 5/2 | Spool | 1380 l/min | S20 | PS13704-551A | PS13704-211A |
| 5599/2 | 5/2 | Spool | 3720 l/min | S20 | PS13724-551A | PS13724-211A |
| 5599/3 | 5/2 | Spool | 6660 l/min | S20 | PS13744-551A | PS13744-211A |
|
All valves are finised in Teflon, inside and outside, providing consistent flow rates and superior durability. Manifold arrangements are also available. The above charts indicate the most popular valves. Nominal pressure 6 Bar. Other valve type i.e. 4/2, 5/3, double acting, impulse acting, and other options. If the valve you require is not listed above, please contact our office where our technical staff will be happy to assist you in making your selection.
|
S20 to ISO5599 |
|
Size 1 Valve
|

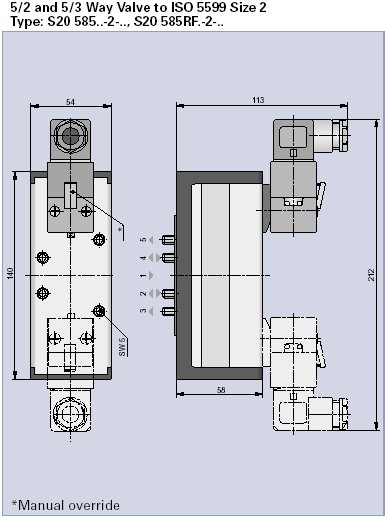

Size 2 Valve
|
|

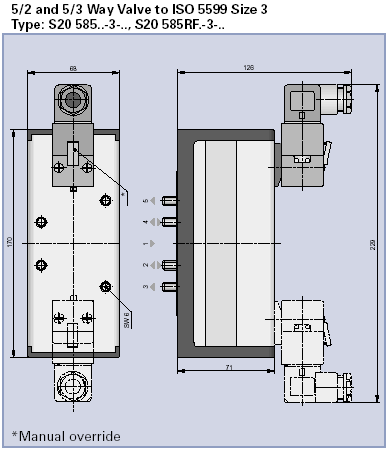

Size 3 Valve
|
