Selecting a valve positioner in
today’s market can be difficult. On one hand, there are conventional positioners
which are unable toprovide the responsiveness and control options needed.
Advanced positioners are often too complex, very difficult to commission and
include options that are rarely, if ever used.
These Storm positioners offer the latest in capabilities with an easy to use
set-up. Installation and commissioning times are reduced. A direct-drive
potentiometer with torque-limiting clutch enables fast mounting, without the
need for time-consuming alignment. They are suitable for linear, rotary, single
or double-acting actuators. An LCD display and keypad allows access to the
auto-calibration routine.
Valve travel, control perameters and auto-tuning of the PID algorithm provides
optimum performance for the specific valve and actuator package. Access to the
PID settings is possible for fine-tuning. Advanced options include
reverse-action, split range, split travel or custom characteristic curves.
Typical auto set-up time is just 3 minutes.
In operation, the Storm’s 16-bit RISC Processor control system utilised the fast
response of the piezo-pneumatic technology to obtain fast and precise control
using measured air pulses when positioning. Once in position, the air flow is
shut off completely and there are no static air losses. Basic diagnostic
functions allow checking for air leaks or incorrect piping. Advanced diagnostic
functions allow checking of seat wear and deterioration of valve performance. A
special diagnostic menu acts as an aid to valve troubleshooting and fault
detection.
Local indication and manual over-ride facilities simplify maintenance routines.
The enclosure is manufactured from chemical and impact-resistant polymer. All
external fitting are stainless steel and the seals are viton. |

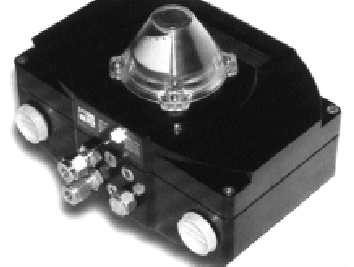

Storm Intelligent
Valve Positioner
|
