Vision Sensors

How to Choose a Lens

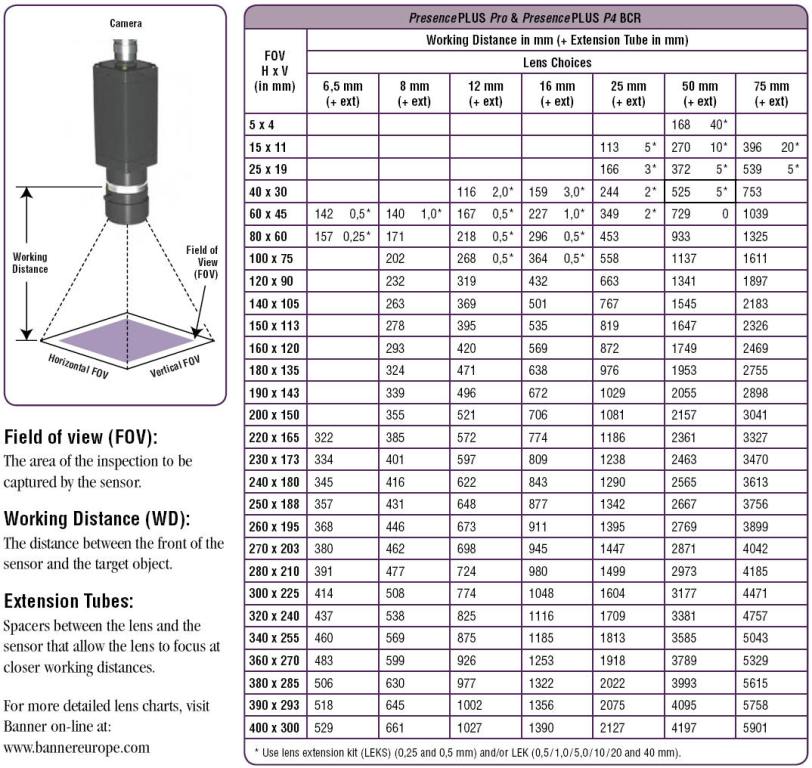

The tables below provide information on the field of view, the working distance and the required spacers or extension tubes for the different imager chips used in Presence PLUS vision sensors.
