Foundation Fieldbus 7/8" Cordsets
Cables (any length) with Pre-Moulded Connectors

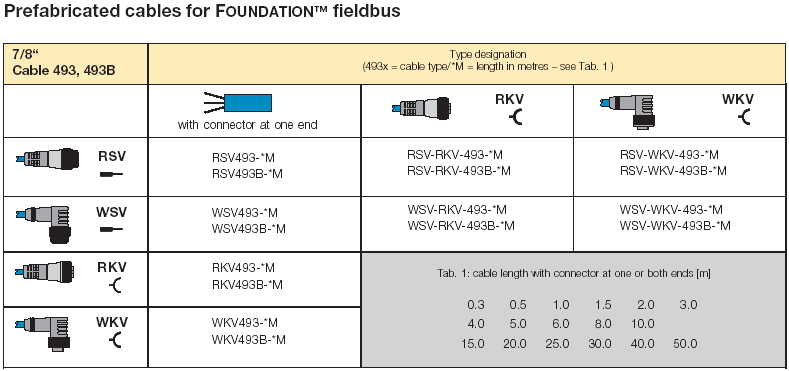

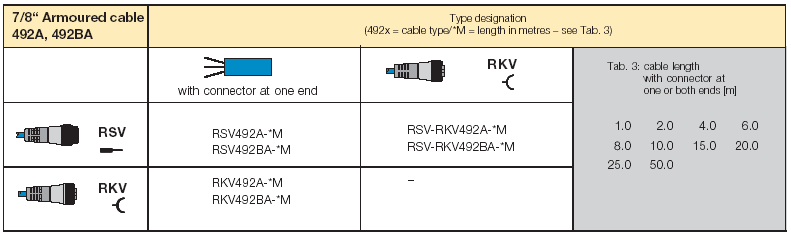

Use the following chart to specify the plug and/or socket arrangement required on each end of a desired cable length.
Once you have selected the cable type you require and the cable length in metres, the chart enables you to select which pre-moulded connector you require on one end.
You can then select either to have the other end of the cable without a connector (column 2 in the chart) or select the type of connector you require on the other end from the corresponding row beneath.

Note: Where "*" appears insert the length required in metres.
