Foundation Fieldbus I/O Stations

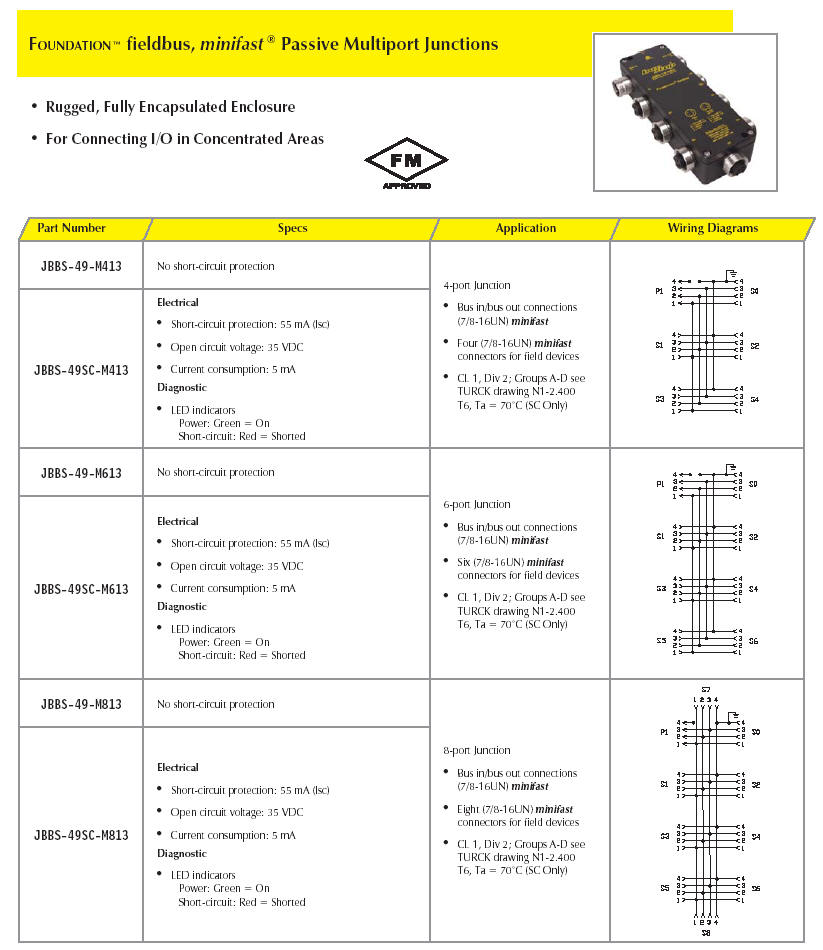

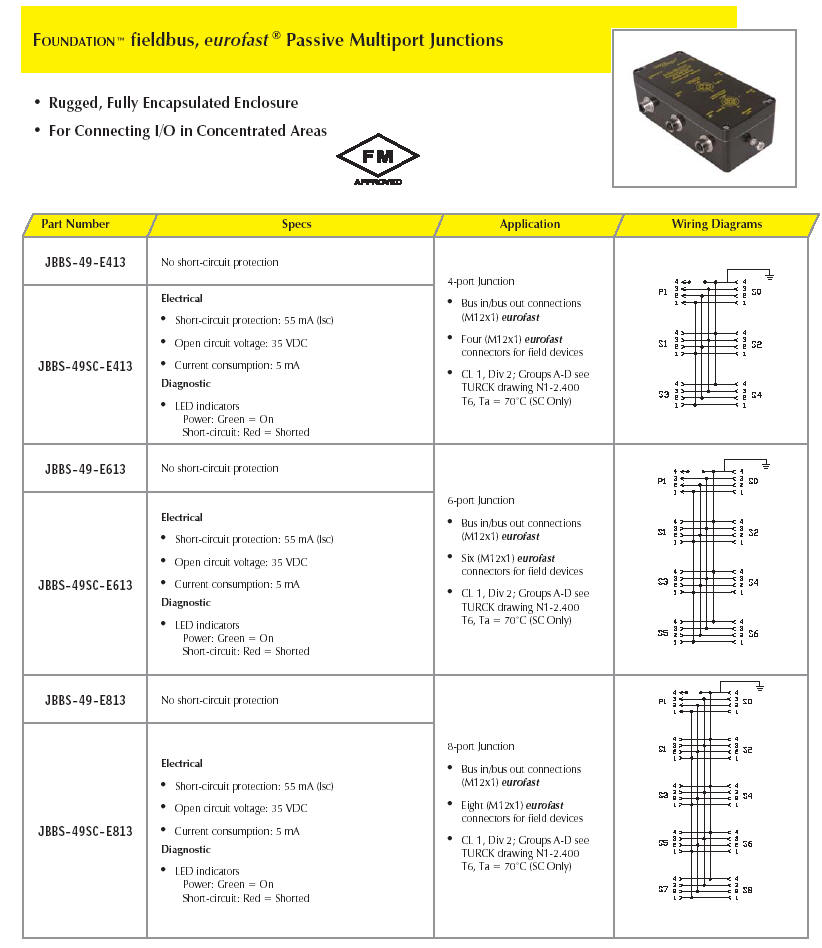

First table shows Junctions with 7/8" connections. The second (lower down) list shows junctions with M12 connections.
