Two-Piece Self-Contained Light Screens
EZ (Easy) Screen Light Curtains

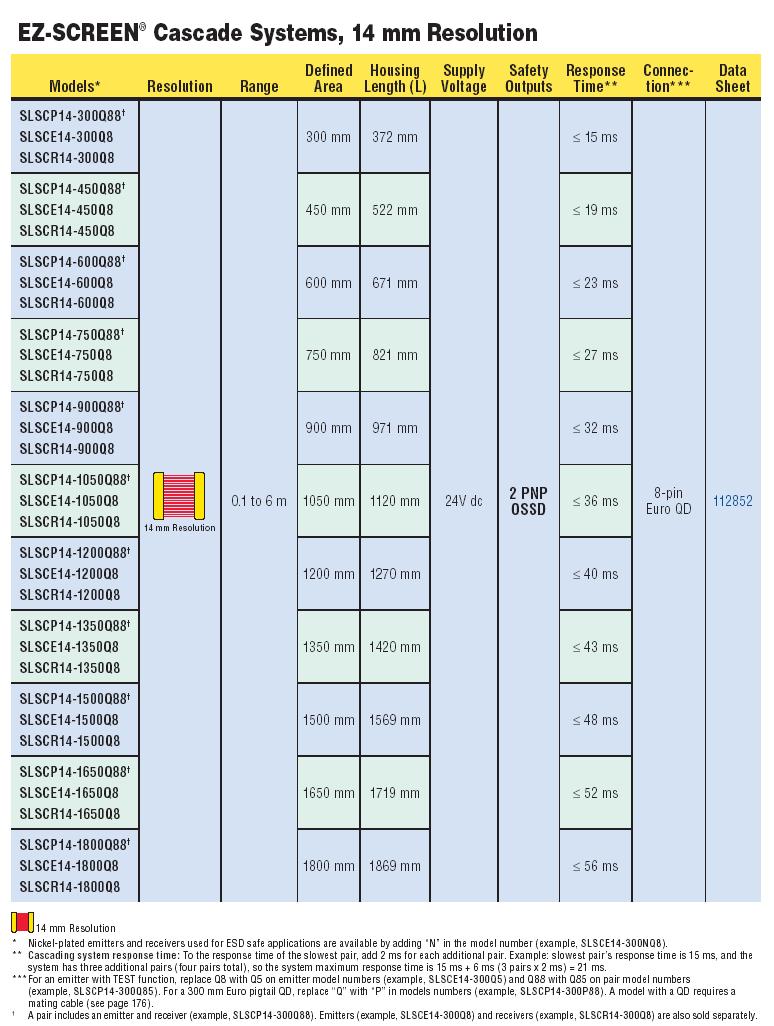

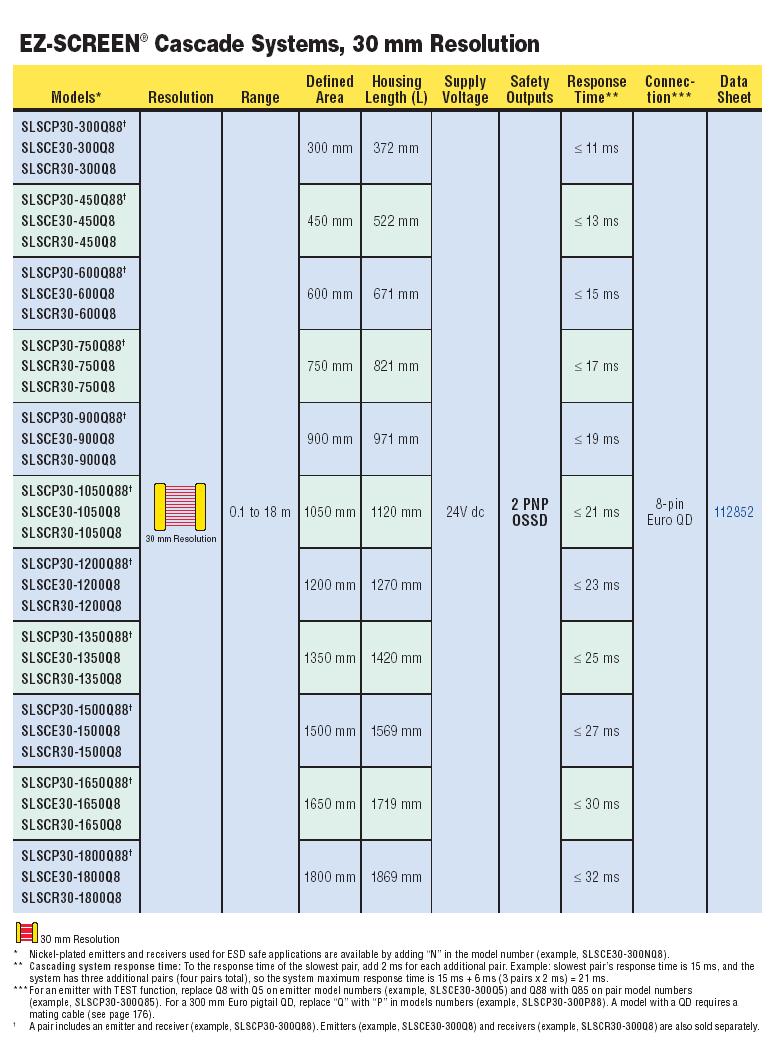

- Cascade Systems (14 & 30mm)

The cascading option allows up to four systems of any length and resolution to be wired together to form a single safety device without significantly increasing the overall response time of the system. Each additional system adds a maximum of only 2 ms to the overall system response time, or a specific response time can be calculated for each system pair depending on length. Extremely flexible interconnection allows up to 53 m of cabling between sensors, dependent on the number of receivers and the length of the machine interface/power cable. E-stop buttons, safety switches, or safety module output contacts can be interfaced at the end receiver to provide even greater flexibility in the machine safeguarding solution.
