Machine Safety-

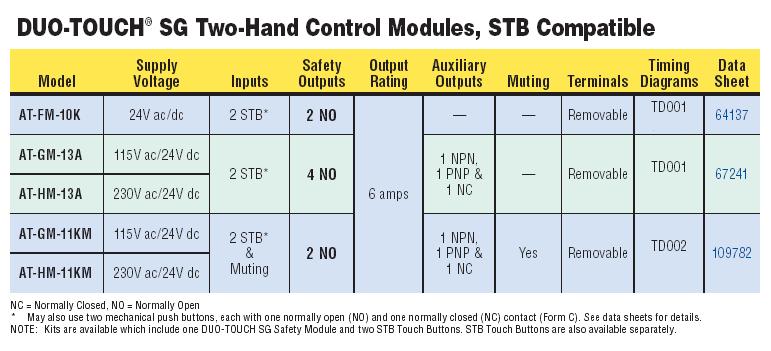

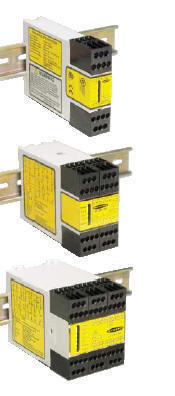

Two-Hand Control - Control Modules

These Control Modules work with Self-Checking Touch Buttons or can be retrofitted with existing mechanical palm buttons to create a complete, ergonomic two-hand control system.

To ensure reliability, modules have a diverse-redundant microcontroller circuit and multiple redundant, force-guided (mechanically linked) output contacts.

Anti-tiedown logic requires that both touch buttons are activated within one-half second of each other.

Modules meet Safety Category 4 per ISO 13849-1 (EN 954-1) and functional Type IIIC two-hand control per EN 574.

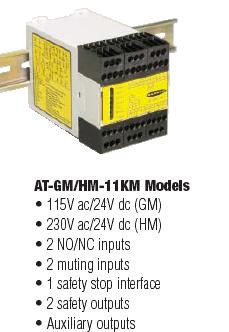

Optional mute inputs allow release of actuating buttons during the non-hazardous portion of the machine cycle (see models ..11KM).

STB touch buttons are far more ergonomic than mechanical and difficult-to-activate capacitive buttons. STB touch buttons MUST be used in combination with safety control modules in safety applications.

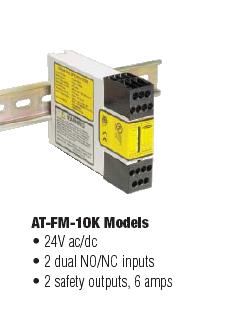

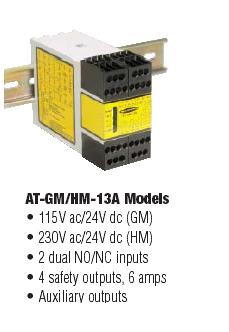

Available in ac and dc voltages: 24V ac/dc, 115V ac/24V dc or 230V ac/24V dc.



Click HERE for Wiring Diagrams:

TD001

TD001

TD002
