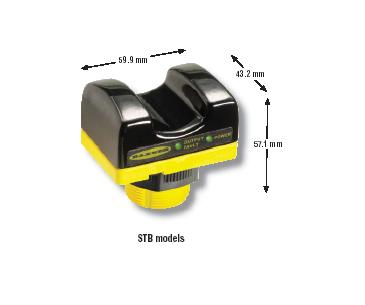

Two-Hand Control - Self Checking Touch Buttons
Provides highest level of safety for two-hand control input devices, per independent certification tests.

Provides redundant microprocessor and optical path.

Responds to a finger blocking light rather than to pressure.

Features ergonomic design to prevent repetitive motion stress.

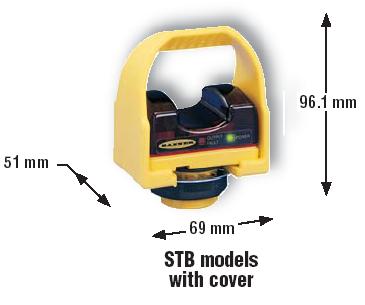

Includes yellow field cover to prevent unintended switching.

Immune to ambient light, EMI and RFI.

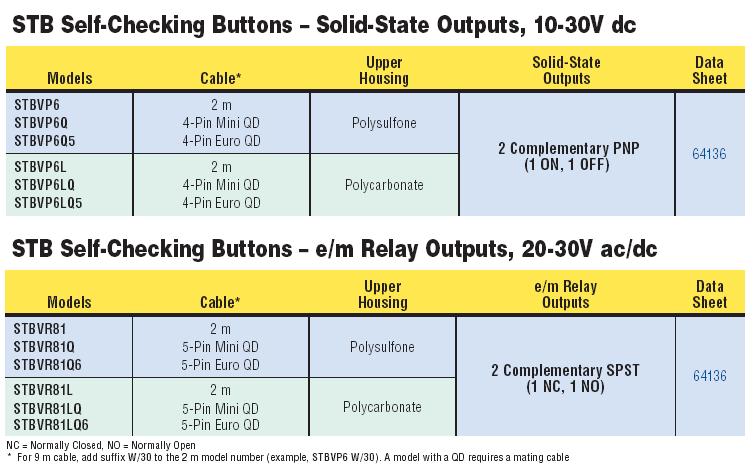

Available with e/m relays rated for 1 amp switch capacity or solid-state outputs rated for 150 mA.

Power, output and fault LED indicators

EN 574-compliant

Click HERE for SPECIFICATIONS:

Click HERE for COVERS

Click HERE for Wiring Diagrams:
