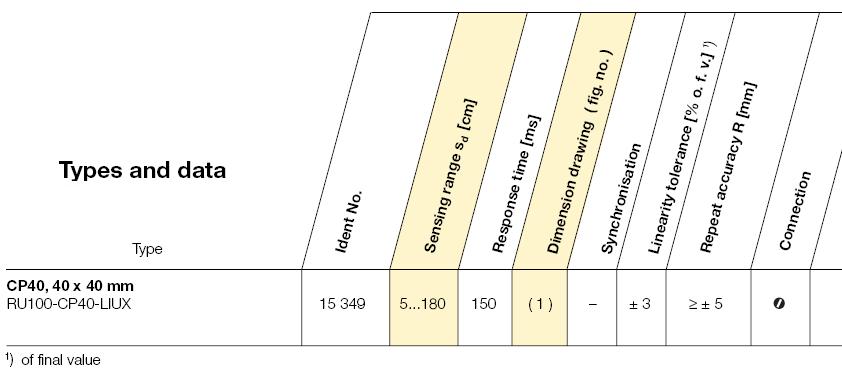

Ultrasonic Sensors type CP40

Analogue Output (current & voltage)

● Analogue output
0...10 V and 0...20 mA
● Sonic cone angle of 60°
● Plastic housing
● Terminal chamber

General data
Supply voltage UB 15...30 VDC
Voltage output 0...10 V
– Load resistance ≥ 4,7 kΩ
Current output 0...20 mA
– Load resistance ≤ 500 Ω
No-load current I0 ≤ 20 mA
Short-circuit protection
Wire-breakage protected
Full reverse polarity protection
Temperature drift 0,4 %/K
Degree of protection IP40
Power on indication LED, yellow
Indication “object within measuring range“
yellow LED flashes
Temperature range 0...+70 °C
Adjustments
Analogue range
– beginning 5...100 cm
– axial width 10...100 cm
adjustable via potentiometer

Materials and clamping ability
Sensor housing PBT-GF30-V0
Clamping ability ≤ 2,5 mm2

Dimensional Drawings

Housing CP40

Two potentiometers adjust the beginning
(S1) and axial width (S2) of the switching
range, resp. the measuring range
(foreground and background suppression).

Wiring Diagram

Characteristic
