CP40Ultra Switch

Ultrasonic Sensors type CP40 Switch Output (pnp)
	● N.O. pnp transistor output ● Sonic cone angle of 60° ● Plastic housing ● Terminal chamber

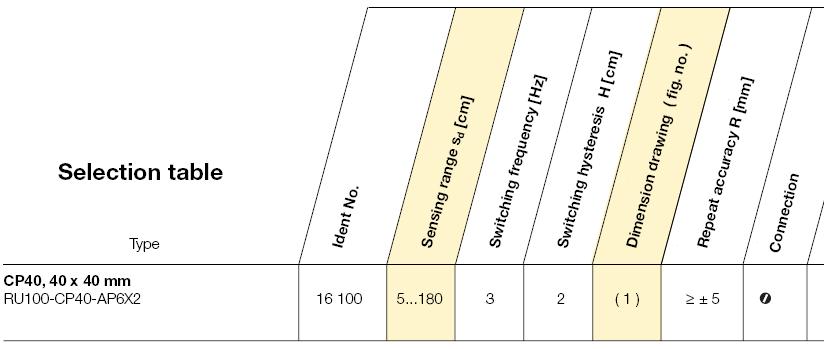

General data Supply voltage UB 10...30 VDC Rated operational current Ie 200 mA No-load current I0 ≤ 20 mA Voltage drop Ud < 2,5 V Cyclic short-circuit protection Wire-breakage protected Full reverse polarity protection Temperature drift 0,4 %/K Degree of protection IP40 Switching indication LED, yellow Indication “object sensed“ LED, green Temperature range 0...+70 °C	Adjustments Switching range – Beginning 5...100 cm – Axial width 10...100 cm adjustable via potentiometer Materials and clamping ability Sensor housing PBT-GF30-V0 Clamping ability ≤ 2,5 mm2
Dimensional Drawings Housing CP40

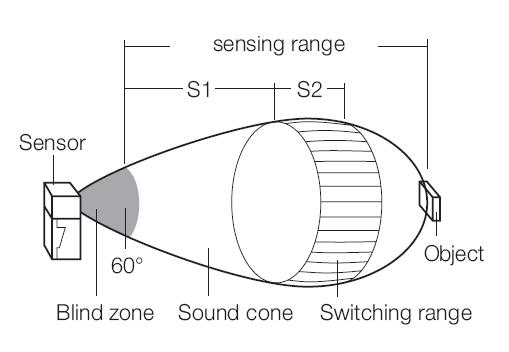

Two potentiometers adjust the beginning (S1) and axial width (S2) of the switching range, resp. the measuring range (foreground and background suppression).
Wiring Diagram
