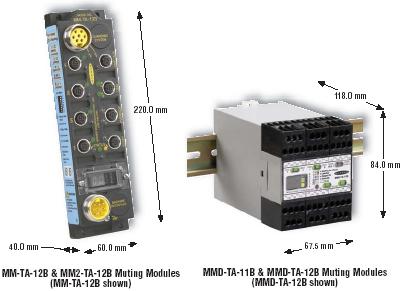

Muting Modules

Suspends safeguarding during hazard-free times in the machine’s cycle

Allows material to move into or from the process, without tripping the primary safeguard.

Monitors hard-relay contact or OSSD output safety devices

Offers two reset options: Automatic and Monitored Manual

Uses diverse redundancy and self-checking, for reliability

Mounts  inside a control panel or outside near the muted safeguard

Connects to supplemental safeguarding devices or E-stops.



Three status LEDs

2-digit diagnostic display

Maximum 30 milliseconds response time

DIN-rail mounted or compact IP65 housing

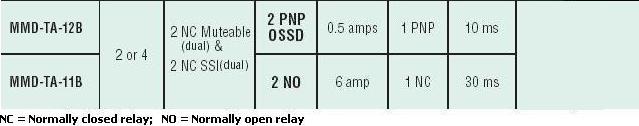

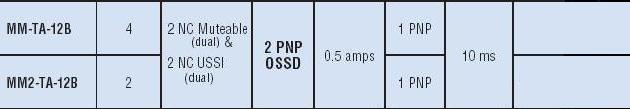

Models for Type 2 and Type 4 applications
