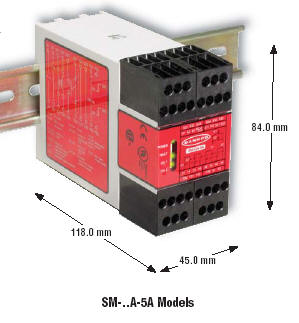

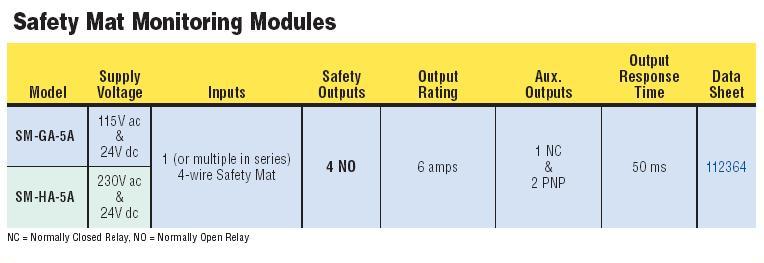

    Safety Mat Monitoring Safety Relays

Module monitors a single mat or a series of connected mats

Use with standard 4-wire safety mat or edge triggered by a short in a contact plate or strip

Voltages 115V ac or 24V dc, & 230V ac or 24V dc.

Output contacts are rated 6 A.

LED indicators show power on, output and fault.

4 redundant forced-guided output contacts

DIN rail mounting Polycarbonate 45 mm housing

Maximum 50 milliseconds response time
