P4 BCR Models

P4 Bar Code Reading Sensors are used where 2-D or 1-D Bar Code reading is required

As a result of additional information requirements, many industries are changing from 1-D barcodes (single row of lines) to the 2-D style which is made up of a rectangular array:



Industry-standard bar code metrics and grading capabilities make the P4 BCR ideal for a wide range of applications such as error-proofing of product codes or verifying content codes for the pharmaceutical industry. Validating recipient information or providing traceability in the automobile assembly industry are also suitable to typical P4 BCR applications, as well as equipment and process protection.

Advanced 2D & 1D reading capabilities.

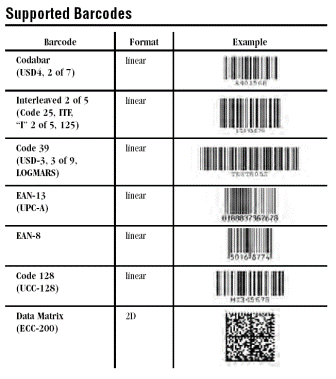

The P4 BCR vision sensor reads advanced 2D and 1D bar codes including Data Matrix ECC200 as well as linear codes such as Code 39, Code 128, Codabar, Interleaved 2 of 5, EAN-8 and EAN-13 (supports UPC-A).

Easy to install.
Several features of the P4 BCR make it particularly easy to install and use. Remote TEACH allows the sensor to learn new features to inspect for, and built-in live video output allows users to view the sensorís inspections in real time and to view failed inspection images without a PC.

Application Example:

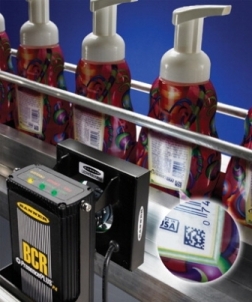

Soap Bottle Inspection                     Print Inspection
