Q30U Switch
Q30U Anal

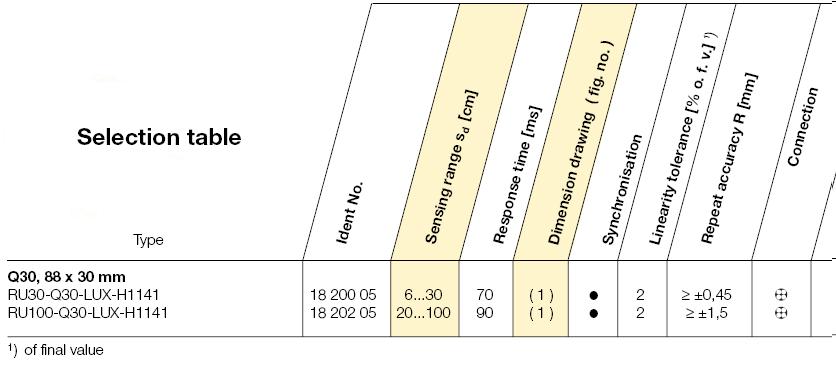

Ultrasonic Sensors Type Q30

Analogue Output (0 - 10V)

Housing style Q30
● Analogue output (0 - 10V)
● Sonic cone angle of 6°
● Plastic housing
● Connector

General data
Supply voltage UB 18...35 VDC
Voltage output 0...10 V
Load resistance > 1 kΩ
No-load current I0 ≤ 35 mA
Cyclic short-circuit protection
Fully reverse polarity protected
Wire-breakage protected
Temperature drift 0,17 %/K
Degree of protection IP65
Indication “object within measuring range“
LED, yellow
Temperature range 0...+55 °C
Adjustments
Upper limit of analogue range
adjustable via potentiometer

Materials
Sensor housing Crastin, SK 645FR
Sonic transducer Epoxy resin
Transducer ring PBT

Dimensional Drawings



Housing Q30
30 mm high

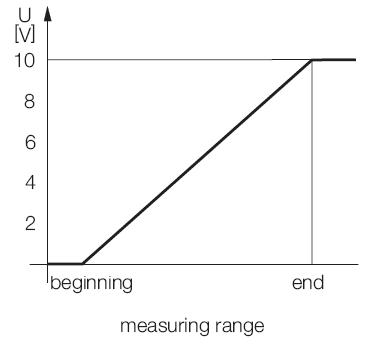

Characteristic

Wiring Diagram

X1 = Synchronisation / Enable Input
