Q30U Switch
Q30U Anal









Ultrasonic Sensors Type Q30

Single Switch Output (pnp)

Housing style Q30
● N.O. pnp transistor output
● Sonic cone angle of 6
● Plastic housing
● Connector

General data
Supply voltage UB 18...35 VDC
Rated operational current Ie 100 mA
No-load current I0 ≤ 35 mA
Voltage drop Ud < 2 V
Cyclic short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Temperature drift 0,17 %/K
Degree of protection IP65
Switching indication LED, yellow
Temperature range 0...+55 C
Adjustments
Upper limit of switching range
adjustable via potentiometer

Materials
Sensor housing Crastin, SK 645FR
Sonic transducer Epoxy resin

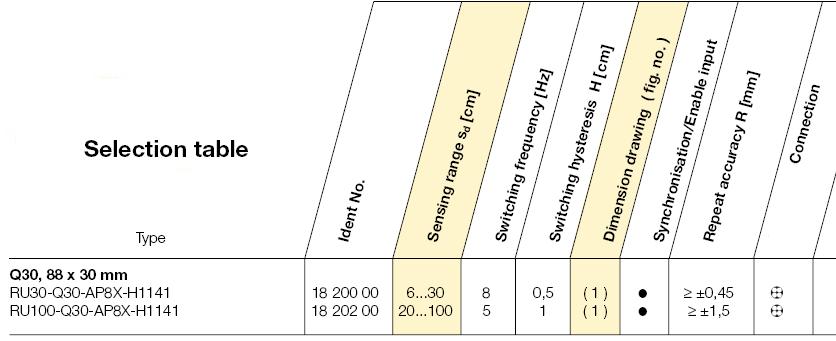

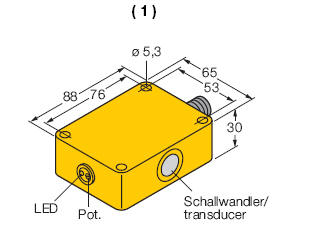

Dimensional Drawings



Housing Q30
30 mm high

Wiring Diagram

X1 = Synchronisation / Enable Input
