Q50Ultra Switch
Q50Ultra Analog









Ultrasonic Sensors type Q50U

Analogue Output (current or voltage)

● Analogue output
for current or voltage
● Sonic cone angle of 12°
● Plastic housing
● Cable, 2 m
● Connector

General data
Supply voltage UB 10...30 VDC
Current output 4...20 mA
– Load resistance < 1 kΩ
Voltage output 0…10 V
– Load resistance > 2,5 kΩ
No load current I0 ≤ 40 mA
Short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Temperature drift 0,02 %/K
Degree of protection IP67
Indication “object within measuring range“
LED, yellow
Temperature range -20...+70 °C

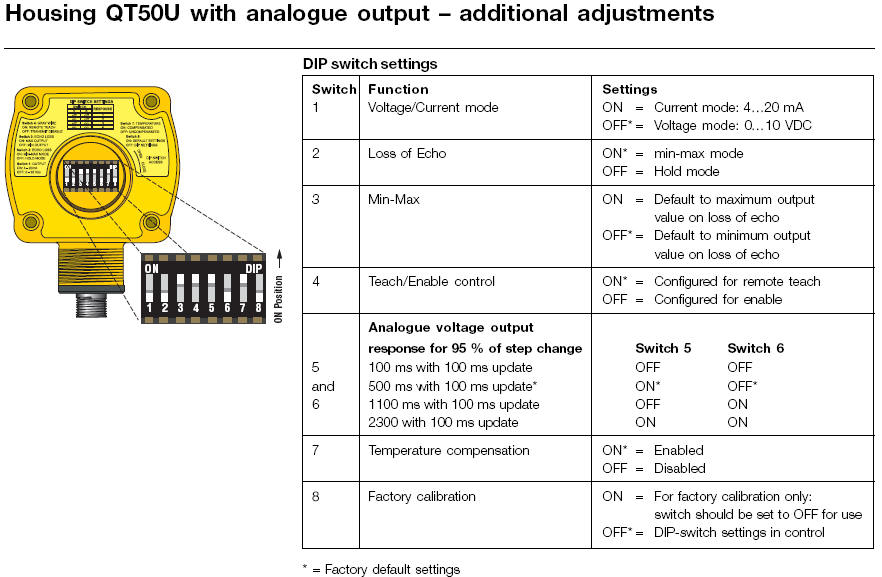

Adjustments
Measuring area adjustable by Teach
button; adjustment guidelines see below

Materials
Sensor housing ABS
Sonic transducer Epoxy resin

Dimensional Drawings

Housing Q50U



Wiring Diagram

5 = Remote teach (Connect to +)
corresponds to pushbutton operation
