Q50Ultra Switch
Q50Ultra Analog









Ultrasonic Sensors type Q50U

Switch Output (two pnp or two npn)

● Two N.O. pnp or two npn
transistor outputs
● Sonic cone angle of 12°
● Plastic housing
● Cable, 2 m
● Connector

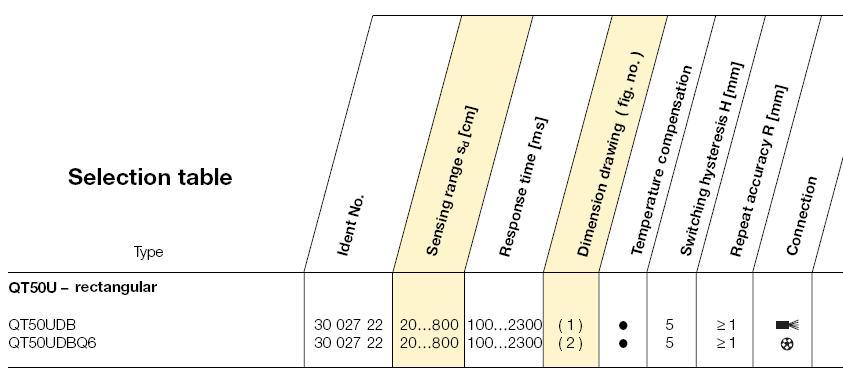

General data
Supply voltage U
B 10...30 VDC
Rated operational current Ie 150 mA
No load current I
0 ≤ 100 mA
Cyclic short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Temperature drift 0,02 %/K
Degree of protection IP67
Indication “object within measuring range“
LED, yellow
Temperature range -20...+70 °C
Adjustments

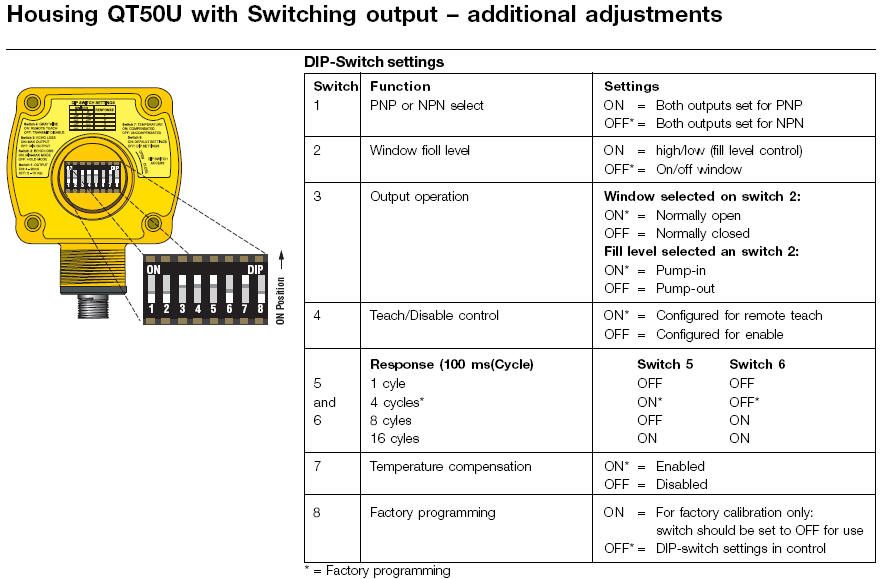

First and second switching range
via teach-in function (push button or
remote input). See Below

Materials
Sensor housing thermopl. polyester
Sonic transducer Epoxy resin

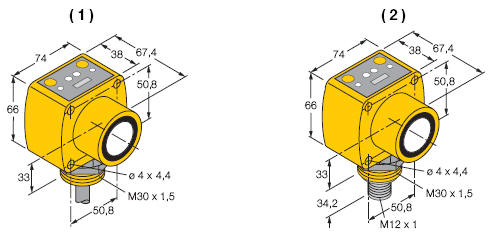

Dimensional Drawings

Housing Q50U

Wiring Diagram

5 = Remote teach (Connect to +)
corresponds to pushbutton operation
