RFID - Radio Frequency Identification

Coded tags are attached to moving equipment and can be written to and read by radio frequency (RF)  heads even while moving fast or in high temperatures. A favourite with the motor industry, tags can have the entire car or engine specification written in a tag which tells each phase of production what exactly is required e.g. what paint colour should be used in the automated spray booth.

Fast: Write to tags at high application speeds, with minimal read-write time of 0.5 ms per Byte making transport speeds of over 10 m/s are no problem.
High Temperature: standard data carriers operate up to temperatures up to 120 °C, data carriers are also available up to 210 °C.
Durable: Use of state-of-the-art FRAM storage technology allows 1010 write operations and an unlimited number of read operations, tags rarely need replacing
Long Life: At appropriate ambient temperatures all data remains stored on the data carriers for 10 years
Simple Integration:  Standard functions blocks and interfaces for PROFIBUS-DP, DeviceNet™, Ethernet Modbus-TCP, PROFINET IO, EtherNet/IP
Easy Communications: Programmable gateways fast signal processing for PROFIBUS-DP, Ethernet Modbus TCP, Ethernet/IP

Picture: Volkswagen Sachsen GmbH

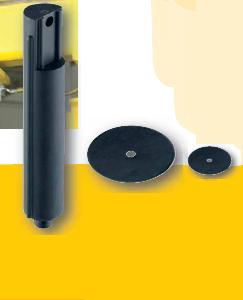

Data Carriers (Tags)

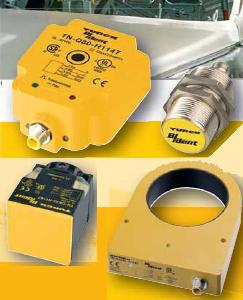

Read-Write Heads

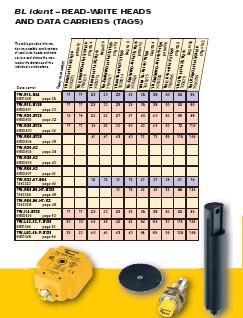

Tag-Head Distance

BL20 Interface Modules (IP20)



BL67 Interface Modules (IP67)

Cordsets

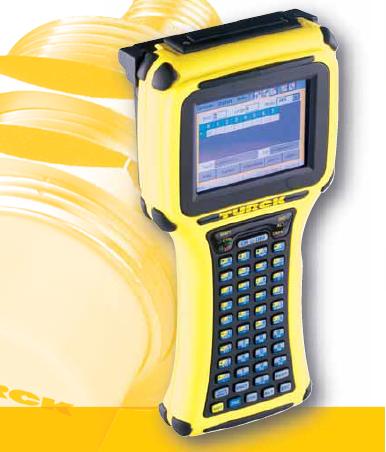

Handheld

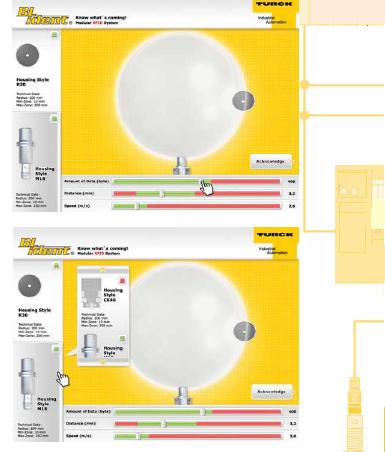

Configuration Software

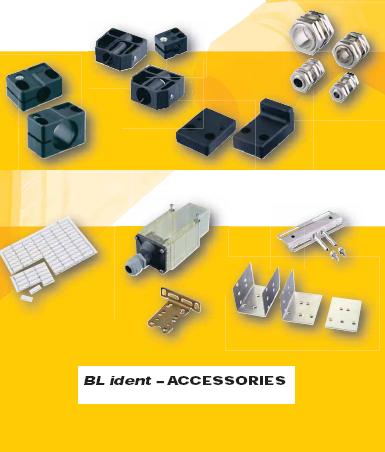

Accessories
