Safety Switches

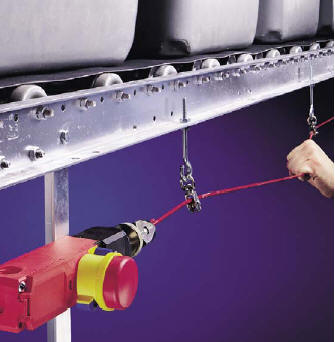

Rope Pull Switches

Available spans range from 6 to 100 m

Trip and latch switch models are available

Minimum switch life is 1-million operations

Heavy-duty switch housings withstand harsh environments

Switch activates if the rope is pulled, becomes loose or breaks

Positive opening safety contacts (IEC 60947-5-1)

Monitoring Contacts


Models LM40
 		 Models LS42 Models QM72 Models QM90
Rope span up to 6 meters Rope span up to 75 meters
Rope spans 6, 12 or 20 m

Rope span up to 100 m
with switch in centre

Model with E-stop button



Trip and latch models

Latch design

Latch design

Latch design
Metal Housing & Actuator  High-Impact Thermoplastic Housing, Metal Actuator  Metal Housing & Actuator  Metal Housing & Actuator


Tension indicator

Tension indicator
