Ultrasonic Sensors type M18 - Analogue Current / Voltage Output



Threaded barrel housing, S18U
● N.O. pnp/npn transistor output

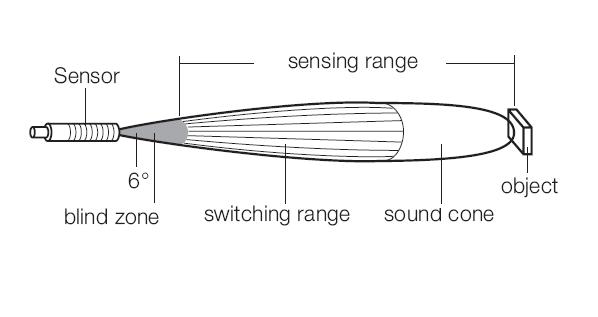

● Sonic cone angle of 6°
● Plastic Housing
● Cable, 2 m
● Connector

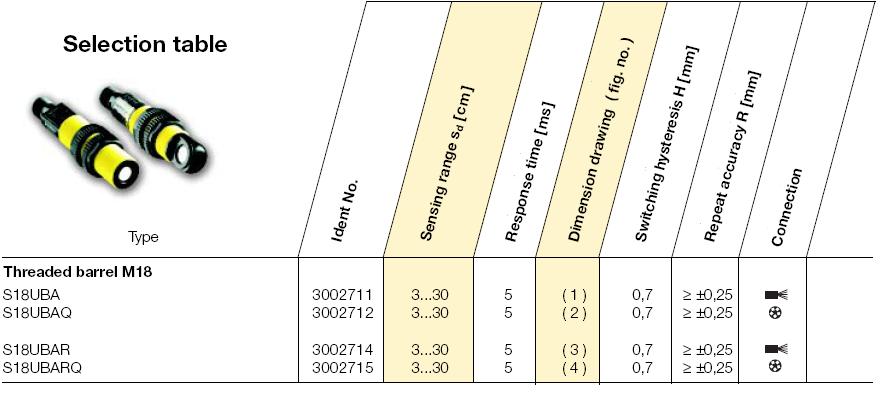

General data
Supply voltage UB 10...30 VDC
Rated operational current 100 mA
No load current I0 ≤ 65 mA
Full reverse polarity protection
Wire-breakage protected
Temperature drift 0,02%/K
Degree of protection IP67
Indication “object within measuring range“
LED, yellow
Temperature range -20...+60 °C
Adjustments
Switching area adjustable by Teach button
Adjustment guidelines see below

Materials
Sensor housing ABS
Sonic transducer Epoxy resin

The switching and measuring range is adjusted via push button or external programming line.
The teach mode is entered by pressing the teach button for 2 s. The
switching/measuring range is then adjusted by another press of the
button. Two dual colour LEDs indicate the sensor status.

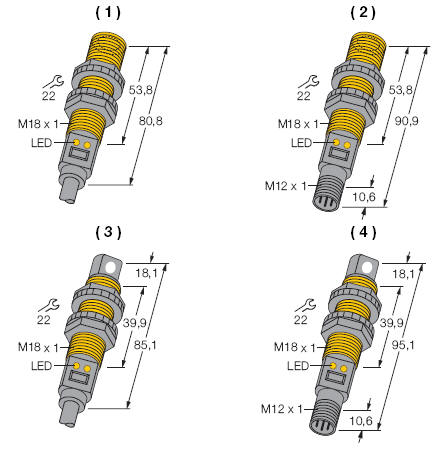

Dimensional Drawings


Threaded barrel M 18 x 1
Housing diameter 18 mm
Fixing torque 20 Nm
Spanner size (AF) 22
Thickness of nut 4 mm

Wiring Diagram
