Ultrasonic Sensors type M18/M18KS - Switch Output

Threaded barrel housing, M18K
● N.O. pnp transistor output
● Sonic cone angle of 6
● Adjustable via teach input
● Brass, nickel-plated
● Connector
4-fold LED, visible from all sides

General data
Supply voltage UB 20...30 VDC
Rated operational current Ie 150 mA
No-load current I0 ≤ 20 mA
Voltage drop Ud < 2 V
Cyclic short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Temperature drift 0,17%/K
Degree of protection IP67


LED indications
Output yellow
Teach mode yellow flashing
Temperature range -25...+70 C

Adjustments
Upper limit of the switching range
(RUN...) or reflector position
(RUR...) adjustable via teach input. See VB2-SP2

Materials
Sensor housing CuZn, nickel-plated
Sonic transducer Epoxy resin and
PU-foam
Transducer ring PBT

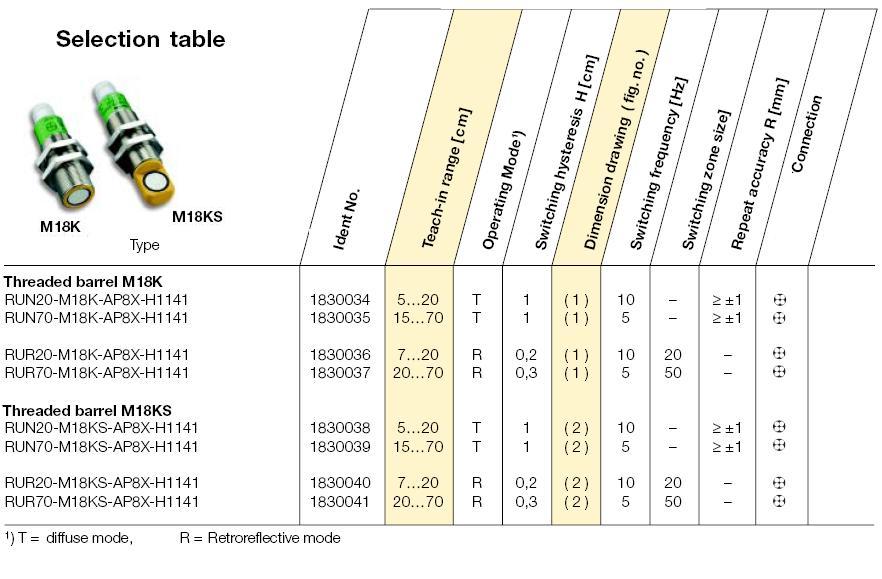

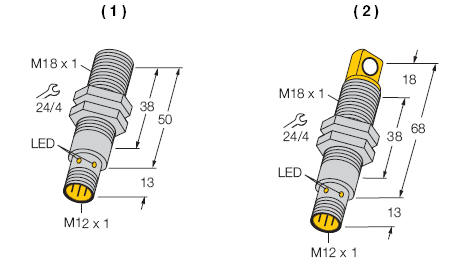

Dimensional Drawings




Threaded barrel M 18 x 1
Housing diameter 18 mm
Fixing torque 20 Nm
Spanner size (AF) 24
Thickness of nut 4 mm

Wiring Diagram
