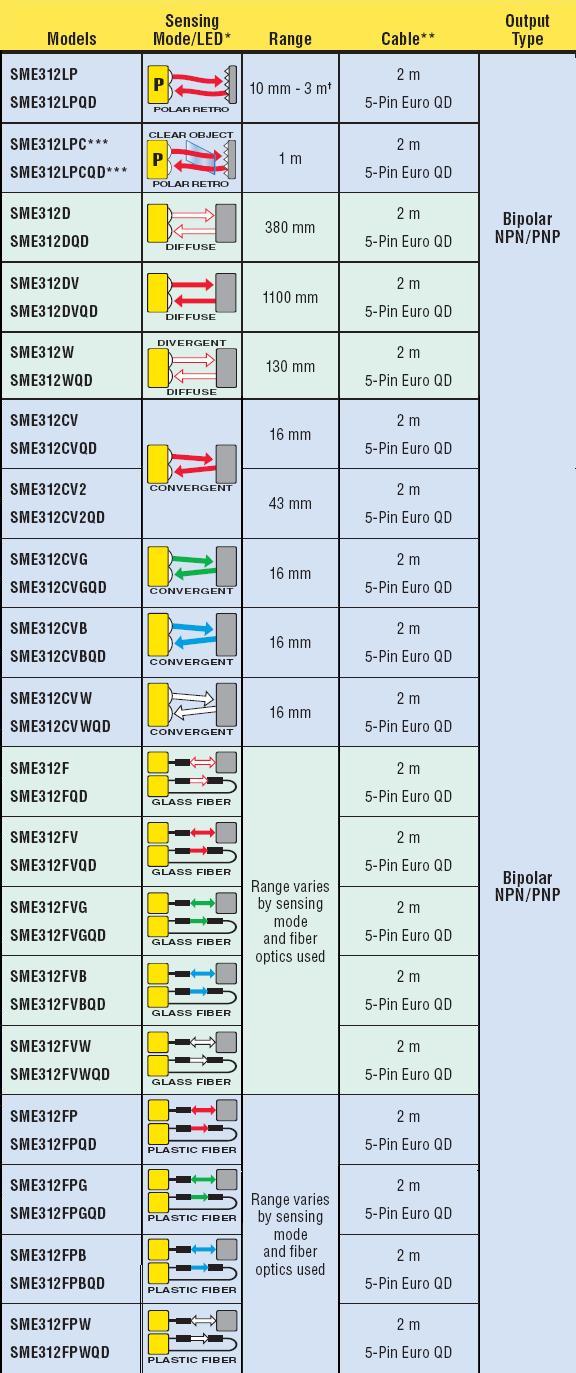

MINI-BEAM® Expert™ Sensors



Simple push-button programming or
Remote TEACH via wire
Dual-LED multi-function indicators
2 m or 9 m integral cable or
Euro-style quick disconnect fitting
Popular 18 mm threaded lens mount

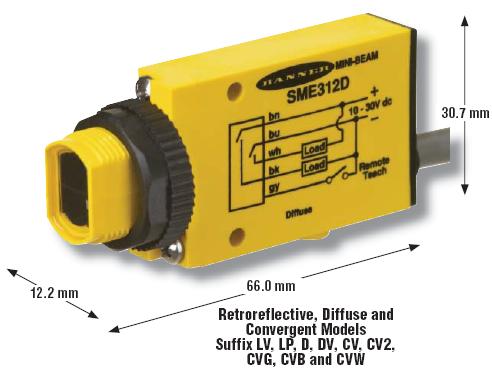

DIMENSIONS
