QS18 Sensors
QS18 Teach Sensors
Mini-Beam DC
Mini Beam AC
Mini Beam ac/dc
Mini Beam Expert
Photoelectric Facts









Photoelectric Sensors
WORLD-BEAM®
QS18 Series
Sensors

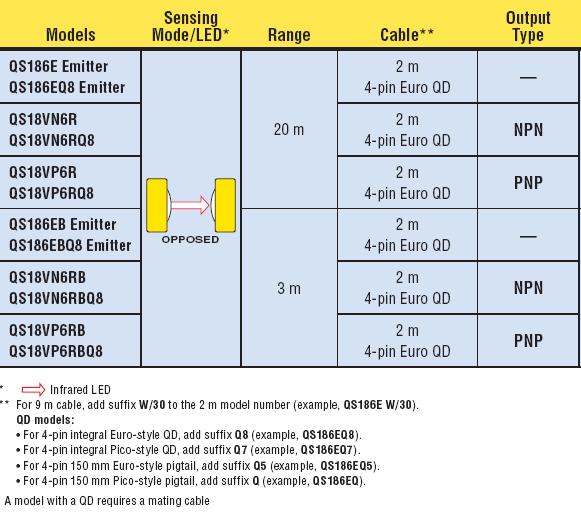

Opposed

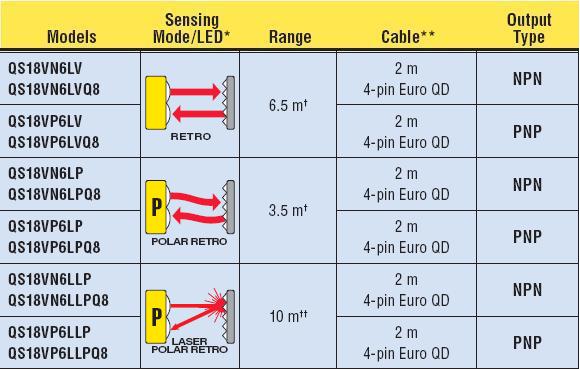

Retro-reflective

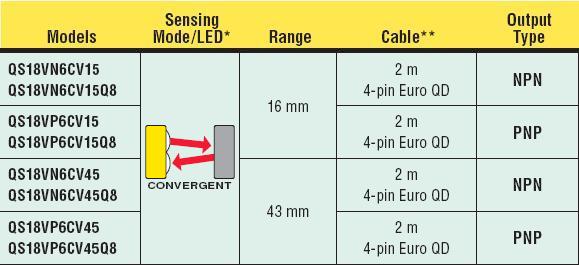

Convergent

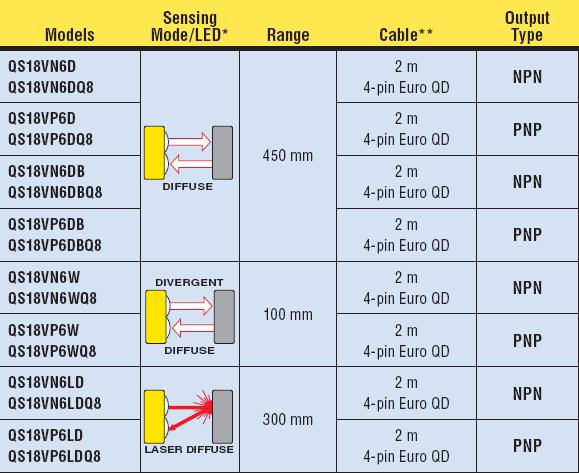

Diffuse

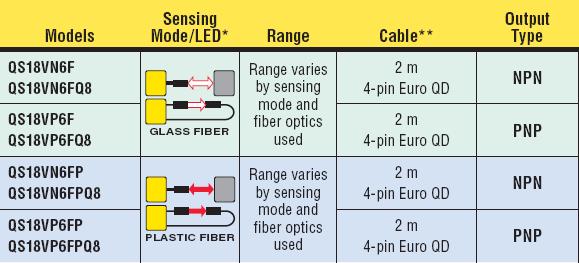

Plastic & Glass Fibre Optic

 Adjustable field


Fixed field

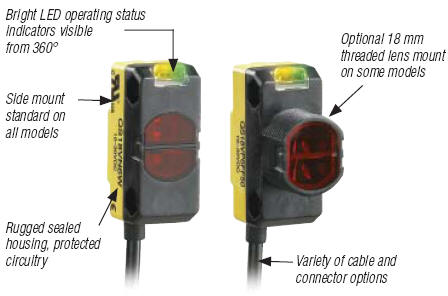

• Features a universal housing with an 18 mm threaded lens or side mounts

• Replaces hundreds of other sensors

• Meets IP67 and NEMA 6 standards for harsh environments

• Available in opposed, polarized and non-polarized retro-reflective, convergent, regular and wide-angle diffuse, laser, ultrasonic, plastic or glass fibre optic, fixed-field and adjustable-field sensing modes

• Offers easy push-button TEACH-mode setup in Expert™ QS18E and ultrasonic models

• Ranges up to 20 m

Eight sensing modes for solving most applications


High power, visible red and infrared sensing beam

Highly visible diagnostics



Opposed, diffuse, retro-reflective &  adjustable field models

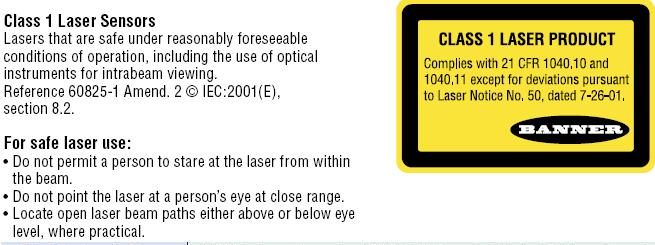

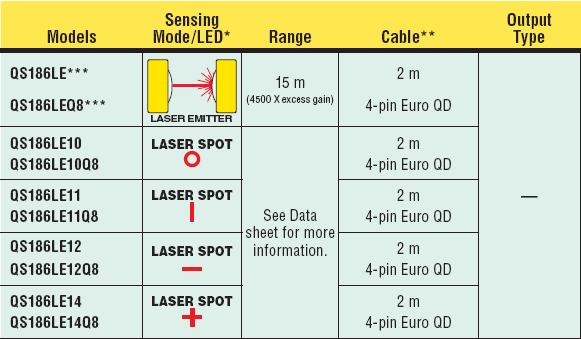

High-performance sensing with visible Class 1 lasers

Long sensing ranges

Ideal for confined areas

Emitter models available with five beam shapes

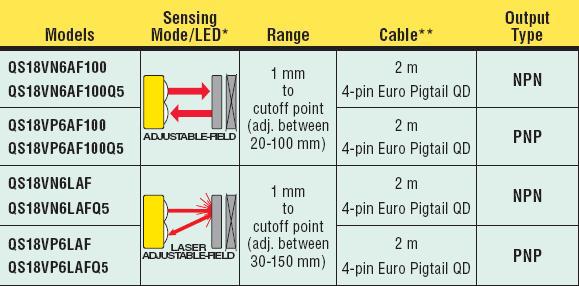

Adjustable-field models
 with cut-off point from
20 to 100 mm or
 30 to 150 mm

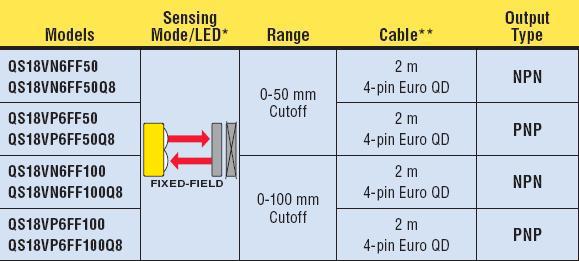

Fixed-field models sensing range of 50 or 100 mm

Visible red LED or laser sensing beam

Accurate and reliable even with low-reflectivity targets

Ideal for small, difficult-to-access areas

Select the sensing mode you require

Or scroll down to compare

BACK TO TOP OF PAGE



BACK TO TOP OF PAGE


BACK TO TOP OF PAGE


BACK TO TOP OF PAGE

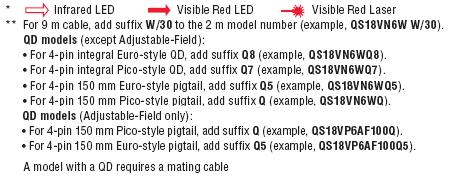

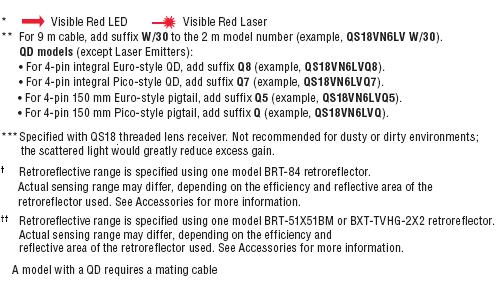

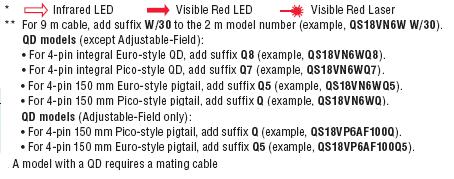

Notes:
