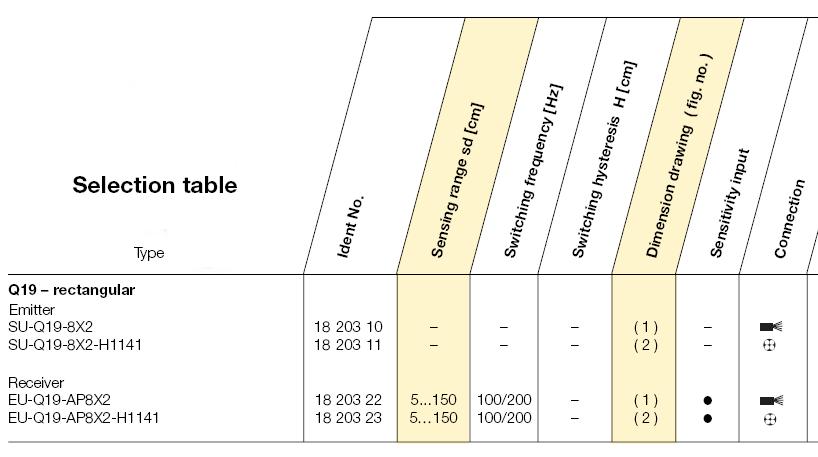

Ultrasonic Sensors type Q19

Switch Output (pnp)

● Opposed mode ultrasonic sensor
● Reliable detection of clear objects and materials
even under difficult sensing conditions
● Connection programmable resolution
● Sensing range of up to 150 cm
● Compact rectangular housings
● Cable or connector versions

General data
Supply voltage UB 20...30 VDC
Rated operational current Ie 100 mA
No-load current I0
Emitter < 30 mA
Receiver < 20 mA
Short-circuit protection
Wire-breakage protected
Full reverse polarity protection
Degree of protection IP67
Power on indication LED, green
Switching indication (receiver)
LED, yellow
Temperature range 0...+70 C
Adjustments
Connection programmable sensitivity
on receiver

Materials
Sensor housing Crastin
Sonic transducer Epoxy resin
Transducer ring PBT

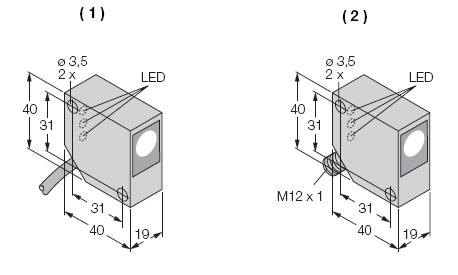

Dimensional Drawings



Housing Q19

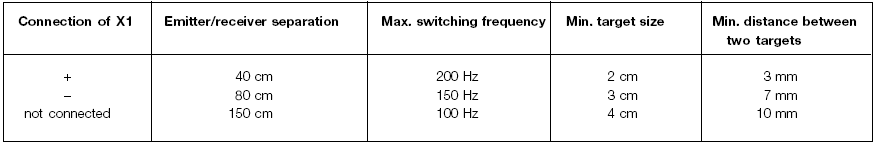

Q19 type sensors provide a choice of three different resolutions.
The resolution is connection programmable via the X1 line (receiver).
The resolution has an influence on the switching frequency,
the minimum target size and the minimum separation distance between two targets.

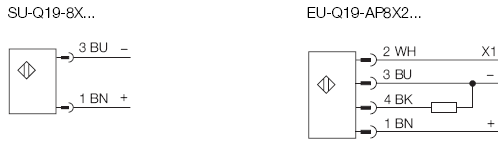

Wiring Diagram
