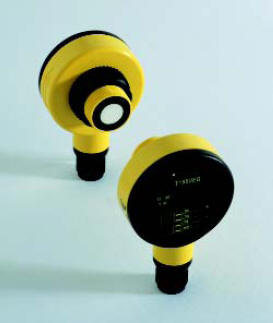

Ultrasonic Sensors type T18

Switch Output (pnp)

● Opposed mode ultrasonic sensor
● Reliable detection of clear objects and materials
under difficult sensing conditions
● Connection programmable resolution
● High immunity against ambient acoustic
and electrical noise
● Sensing range of up to 60 cm
● Compact housing (T-pack) with M18 thread
● 12…30 VDC operation
● Cable or connector versions

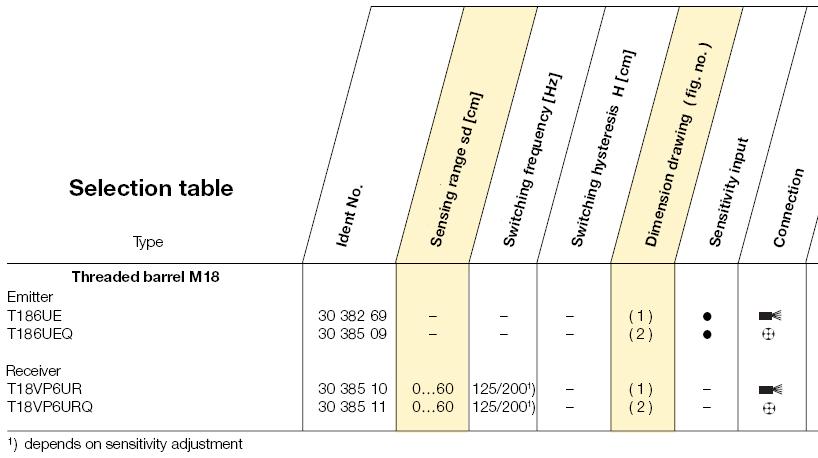

General data
Supply voltage UB 12...30 VDC
Rated operational current Ie 150 mA
No-load current I0
– emitter 50 mA
– receiver 35 mA
Short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Degree of protection IP67
Power on indication LED, green
Switching indication (receiver)
LED, yellow
Temperature range -40...+70 °C
Materials
Sensor housing PBT
Sonic transducer Epoxy resin
Transducer ring PBT

Adjustments
Connection programmable sensitivity
on receiver

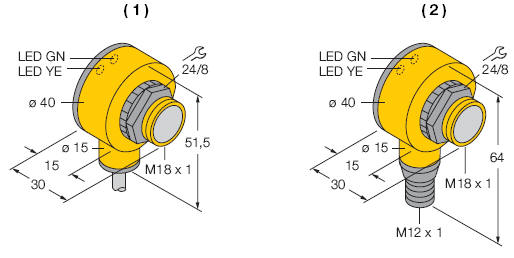

Dimensional Drawings



Housing T18

Selecting the appropriate resolution :
Choose between HIGH and NORMAL resolution by changing polarity of the
voltage supply. In the NORMAL mode weaker signals are also evaluated.
The sensor’s sensing range is extended (60 cm) and the sensor can be used in
difficult environmental conditions. If high speed detection is required, select HIGH
resolution. The sensing range is reduced to 30 cm and compensation of influences
due to deposits are not compensated to the same degree but in this mode the
response time is 1 ms instead of 2 ms (NORMAL resolution).

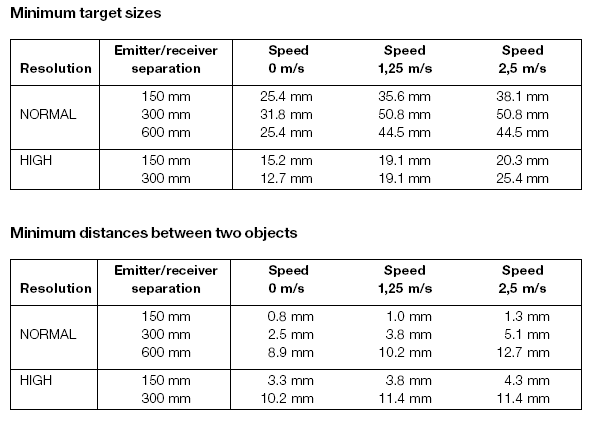

The minimum target sizes and minimum distances between two adjacent objects
are shown in the table below.

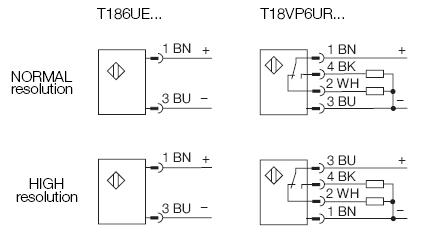

Wiring Diagram
