Ultra30 2pnp

Ultrasonic Sensors type M30 Two Switch Outputs (pnp) N.O.
	Threaded barrel housing, M30 ● Two N.O. pnp transistor outputs ● Sonic cone angle of 6° ● Brass, nickel-plated ● Connector

General data Supply voltage UB 20...30 VDC Rated operational current Ie 300 mA No-load current I0 ≤ 50 mA Voltage drop Ud < 3 V Cyclic short-circuit protection Full reverse polarity protection Wire-breakage protected Temperature drift ±1,5 % 1) Degree of protection IP65 Switching indication LED, yellow Temperature range -25...+70 °C	Adjustments Upper limit of first and of second switching range adjustable via potentiometer or programming device RU-PDI Materials Sensor housing CuZn, nickel-plated Sonic transducer Epoxy resin Transducer ring PBT

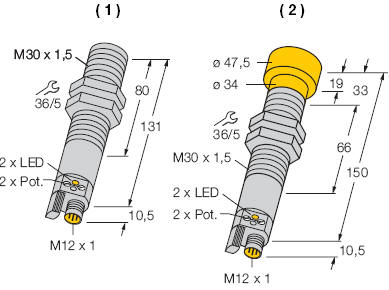

Dimensional Drawings Threaded barrel M30 x 1,5 Fixing torque 60 Nm Spanner size (AF) 36 Thickness of nut 5 mm
Wiring Diagram X1 = Synchronisation / Enable Input
