Ultrasonic Sensors type M30

Switch Output (pnp)

Threaded barrel housing, M30
● N.O. pnp transistor output
● Sonic cone angle of 6
● Brass, nickel-plated
● Connector

General data
Supply voltage UB 20...30 VDC
Rated operational current Ie 300 mA
No-load current I0 ≤ 50 mA
Voltage drop Ud < 3 V
Cyclic short-circuit protection
Full reverse polarity protection
Wire-breakage protected
Temperature drift (RU) 0,17 %/K
(RUC) 1,5 %/1)
Degree of protection IP65
Switching indication LED, yellow
Temperature range -25...+70 C
Adjustments
Lower and upper limit of switching range
adjustable via potentiometer or
programming device RU-PDI (Type RUC)

Materials
Sensor housing CuZn, nickel-plated
Sonic transducer Epoxy resin
Transducer ring PBT

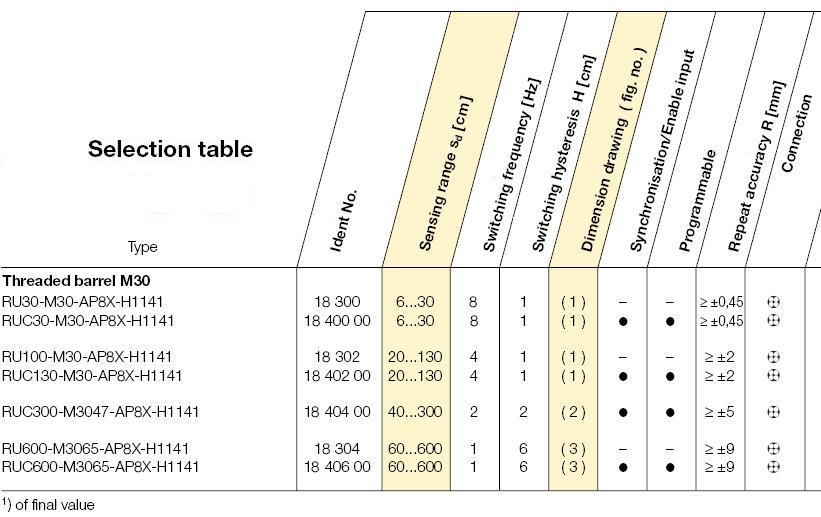

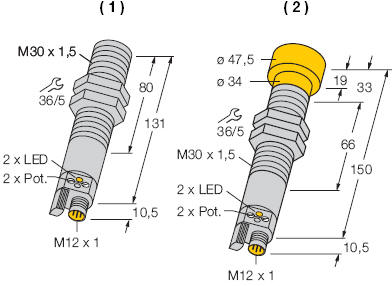

Dimensional Drawings



Threaded barrel M30 x 1,5
Fixing torque 60 Nm
Spanner size (AF) 36
Thickness of nut 5 mm

Wiring Diagram



X1 = Synchronisation / Enable Input
