Profibus DP Cable in Bulk

DP Cable Comparison Table




Note: Type 451 is basic Profibus DP Cable. Type 456 includes a drain wire.

Type 458 is highly stranded offering torsional flexibility. Type 455 is Profibus DP cable with PVC outer jacket.

DP Cable Type: 451 456 458 455
Outer Jacket PUR PUR PUR PVC
Drain Wire No Yes Yes Drain
Stranding 19x0.15 19x0.15 65x0.079 19x0.15
DC Resistance (Loop) 110 Ohm/km 50 Ohm/km 50 Ohm/km 50 Ohm/km
Nom Impedance 160 Ohm@16MHZ 150 Ohms@1MHz 150 Ohms@1MHz 150 Ohms@1MHz
Nom Capacitance 28 pF/m 29.53 pF/m 29.53 pF/m 29.53 pF/m
External Diameter 7.6 7.9 8.5 8.5
Cross Section 2x0.34 2x0.34 2x0.34 2x0.34
Rated Voltage 250V 250V 250V 250V
Rated Current 4A 4A 4A 4A

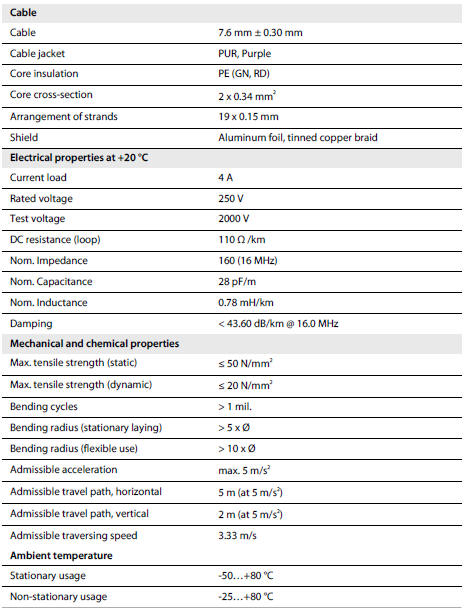

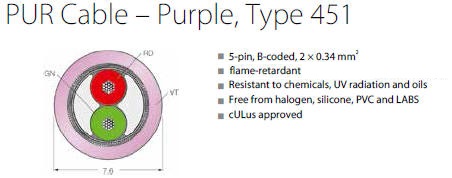

Type 451 is a standard Profibus DP Cable without drain wire and PUR Exterior.

It has an Aluminium Foil Shield and a Copper Braid Shield


Cable Type Ident No Drum Length Outer Colour Outer Protection Cross Section No Strands x Dia External Diameter
KABEL451-30M 6915601 30 Purple PUR 2 x 0.34mm˛ 19x0.15mm 7.6 mm
KABEL451-75M 6915602 75 Purple PUR 2 x 0.34mm˛ 19x0.15mm 7.6 mm
KABEL451-150M 6915603 150 Purple PUR 2 x 0.34mm˛ 19x0.15mm 7.6 mm
KABEL451-300M 6915605 300 Purple PUR 2 x 0.34mm˛ 19x0.15mm 7.6 mm
KABEL451-500M 6915606 500 Purple PUR 2 x 0.34mm˛ 19x0.15mm 7.6 mm

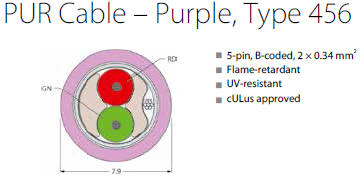

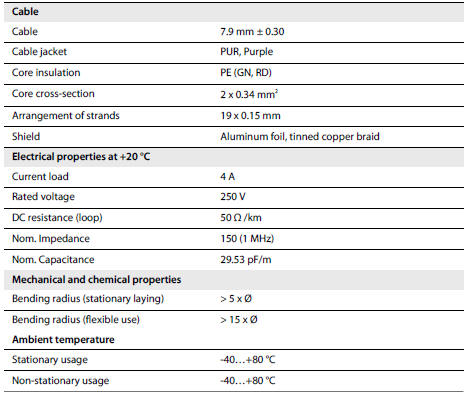

Type 456 is a standard Profibus DP Cable with drain wire and PUR Exterior

It has an Aluminium Foil Shield and a Copper Braid Shield


Cable Type Ident No Drum Length Outer Colour Outer Protection Cross Section No Strands x Dia External Diameter
KABEL456-30M 6604291 30 Purple PUR 2 x 0.34mm˛+Drain 19x0.15mm 7.9 mm
KABEL456-225M 6604294 225 Purple PUR 2 x 0.34mm˛+Drain 19x0.15mm 7.9 mm
KABEL456-500M 6604296 500 Purple PUR 2 x 0.34mm˛+Drain 19x0.15mm 7.9 mm

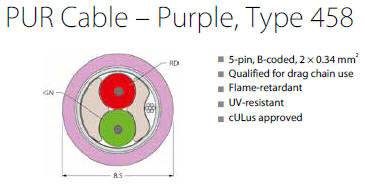

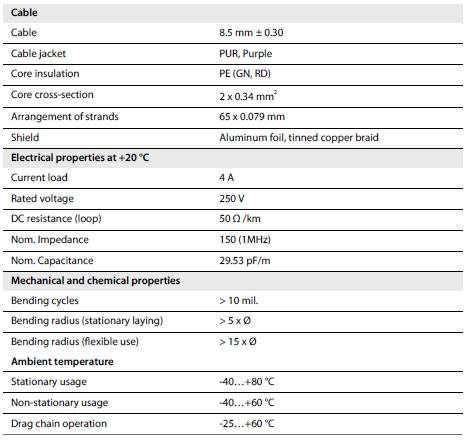

Type 458 is a standard Profibus DP Cable, highly stranded for torsional flexibility with drain wire and PUR Exterior.

It has an Aluminium Foil Shield and a Copper Braid Shield


Cable Type Ident No Drum Length Outer Colour Outer Protection Cross Section No Strands x Dia External Diameter
KABEL458-30M 6604293 30 Purple PUR 2 x 0.34mm˛+Drain 65x0.079mm 8.5 mm
KABEL458-150M 6604300 150 Purple PUR 2 x 0.34mm˛+Drain 65x0.079mm 8.5 mm

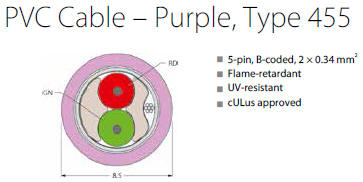

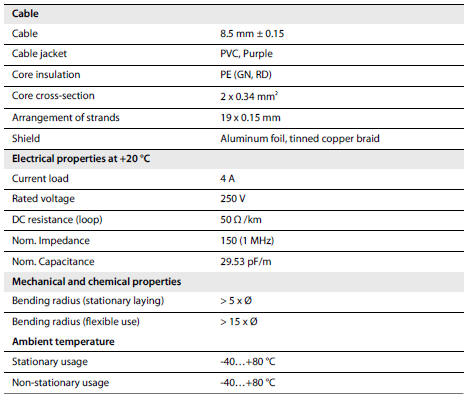

Type 455 is a standard Profibus DP Cable with drain wire and PVC Exterior.

It has an Aluminium Foil Shield and a Copper Braid Shield


Cable Type Ident No Drum Length Outer Colour Outer Protection Cross Section No Strands x Dia External Diameter
KABEL455-30M 6604284 30 Purple PVC 2 x 0.34mm˛+Drain 19x0.15mm 8.5 mm
KABEL455-150M 6604286 150 Purple PVC 2 x 0.34mm˛+Drain 19x0.15mm 8.5 mm
KABEL455-300M 6604288 300 Purple PVC 2 x 0.34mm˛+Drain 19x0.15mm 8.5 mm
