Profibus DP Cordsets M12

Connector on 1 End only


Note: Type 451 is basic Profibus DP Cable.

Type 456 includes a drain wire.

Type 458 has a drain wire and is highly stranded offering torsional flexibility.

Type 455 is Profibus DP cable with PVC outer jacket.


DP Cable Type (Link): Type 451 Type 456 Type 458 Type 455
Outer Jacket PUR PUR PUR PVC
Drain Wire No Yes Yes Drain
Stranding 19x0.15 19x0.15 65x0.079 19x0.15
DC Resistance (Loop) 110 Ohm/km 50 Ohm/km 50 Ohm/km 50 Ohm/km
Nom Impedance 160 Ohm@16MHZ 150 Ohms@1MHz 150 Ohms@1MHz 150 Ohms@1MHz
Nom Capacitance 28 pF/m 29.53 pF/m 29.53 pF/m 29.53 pF/m
External Diameter 7.6mm 7.9mm 8.5mm 8.5mm
Cross Section 2x0.34 2x0.34 2x0.34 2x0.34
Rated Voltage 250V 250V 250V 250V
Rated Current 4A 4A 4A 4A




M12 Cordsets, Connector on One End Only

DP Cable Type 451





Type 451 is a standard Profibus DP Cable without drain wire and PUR Exterior.
It has an Aluminium Foil Shield and a Copper Braid Shield

Cross Section 2 x 0.34mm˛. External Cable Diameter 7.6mm

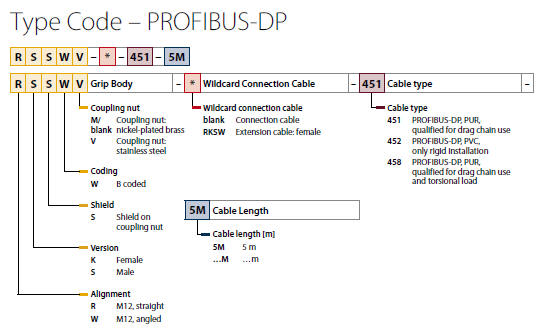

Type Size Indent No M/F Design Cable Length Outer Colour Design
RSSW451-1M/5D M12 8029320 Male Straight 1 Purple



RSSW451-2M/5D M12 6914229 Male Straight 2 Purple
RSSW451-3M/5D M12 6914402 Male Straight 3 Purple
RSSW451-4M/5D M12 TBC Male Straight 4 Purple
RSSW451-6M/5D M12 6914111 Male Straight 6 Purple



RSSW451-10M/5D M12 6914112 Male Straight 10 Purple
RSSW451-15M/5D M12 6914113 Male Straight 15 Purple
RSSW451-20M/5D M12 6914228 Male Straight 20 Purple
RSSW451-25M/5D M12 TBC Male Straight 25 Purple
RSSW451-30M/5D M12 TBC Male Straight 30 Purple
RKSW451-1M/5D M12 6915609 Female Straight 1 Purple
RKSW451-2M/5D M12 6915611 Female Straight 2 Purple
RKSW451-3M/5D M12 6915613 Female Straight 3 Purple
RKSW451-4M/5D M12 TBC Female Straight 4 Purple
RKSW451-6M/5D M12 6914114 Female Straight 6 Purple
RKSW451-10M/5D M12 6914115 Female Straight 10 Purple
RKSW451-15M/5D M12 6914116 Female Straight 15 Purple
RKSW451-20M/5D M12 9030688 Female Straight 20 Purple
RKSW451-25M/5D M12 TBC Female Straight 25 Purple
RKSW451-30M/5D M12 TBC Female Straight 30 Purple
WSSW451-1M/5D M12 TBC Male Right Angled 1 Purple



WSSW451-2M/5D M12 TBC Male Right Angled 2 Purple
WSSW451-3M/5D M12 TBC Male Right Angled 3 Purple
WSSW451-5M/5D M12 6933799 Male Right Angled 5 Purple
WSSW451-6M/5D M12 6914128 Male Right Angled 6 Purple
WSSW451-10M/5D M12 6914129 Male Right Angled 10 Purple
WSSW451-15M/5D M12 6914130 Male Right Angled 15 Purple
WSSW451-20M/5D M12 6914237 Male Right Angled 20 Purple
WSSW451-25M/5D M12 TBC Male Right Angled 25 Purple
WSSW451-30M/5D M12 6914240 Male Right Angled 30 Purple



WKSW451-1M/5D M12 TBC Female Right Angled 1 Purple
WKSW451-2M/5D M12 6914209 Female Right Angled 2 Purple
WKSW451-3M/5D M12 TBC Female Right Angled 3 Purple
WKSW451-4M/5D M12 TBC Female Right Angled 4 Purple
WKSW451-6M/5D M12 6914131 Female Right Angled 6 Purple
WKSW451-10M/5D M12 TBC Female Right Angled 10 Purple
WKSW451-15M/5D M12 TBC Female Right Angled 15 Purple
WKSW451-20M/5D M12 TBC Female Right Angled 20 Purple
WKSW451-25M/5D M12 TBC Female Right Angled 25 Purple
WKSW451-30M/5D M12 TBC Female Right Angled 30 Purple






M12 Cordsets, Connector on One End Only

DP Cable Type 456





Type 456 is a standard Profibus DP Cable with drain wire and has a PUR Exterior.

It has an Aluminium Foil Shield and a Copper Braid Shield

Cross Section 2 x 0.34mm˛. External Cable Diameter 7.9mm

Type Size Indent No M/F Design Cable Length Outer Colour Design
RSSW456-1M/5D M12 6603841 Male Straight 1 Purple



RSSW456-2M/5D M12 6602500 Male Straight 2 Purple
RSSW456-3M/5D M12 6603844 Male Straight 3 Purple
RSSW456-4M/5D M12 6602538 Male Straight 4 Purple
RSSW456-5M/5D M12 6602498 Male Straight 5 Purple



RSSW456-10M/5D M12 6602499 Male Straight 10 Purple
RSSW456-15M/5D M12 6602645 Male Straight 15 Purple
RSSW456-20M/5D M12 TBC Male Straight 20 Purple
RSSW456-25M/5D M12 6603859 Male Straight 25 Purple
RSSW456-30M/5D M12 TBC Male Straight 30 Purple
RKSW456-1M/5D M12 6603852 Female Straight 1 Purple
RKSW456-2M/5D M12 6602497 Female Straight 2 Purple
RKSW456-3M/5D M12 6603855 Female Straight 3 Purple
RKSW456-4M/5D M12 6602538 Female Straight 4 Purple
RKSW456-6M/5D M12 TBC Female Straight 6 Purple
RKSW456-10M/5D M12 6602499 Female Straight 10 Purple
RKSW456-15M/5D M12 6602645 Female Straight 15 Purple
RKSW456-20M/5D M12 TBC Female Straight 20 Purple
RKSW456-25M/5D M12 6603859 Female Straight 25 Purple
RKSW456-30M/5D M12 TBC Female Straight 30 Purple
WSSW456-1M/5D M12 TBC Male Right Angled 1 Purple



WSSW456-2M/5D M12 TBC Male Right Angled 2 Purple
WSSW456-3M/5D M12 6603480 Male Right Angled 3 Purple
WSSW456-5M/5D M12 6932282 Male Right Angled 5 Purple
WSSW456-6M/5D M12 TBC Male Right Angled 6 Purple
WSSW456-10M/5D M12 6603974 Male Right Angled 10 Purple
WSSW456-15M/5D M12 TBC Male Right Angled 15 Purple
WSSW456-20M/5D M12 TBC Male Right Angled 20 Purple
WSSW456-25M/5D M12 TBC Male Right Angled 25 Purple
WSSW456-30M/5D M12 TBC Male Right Angled 30 Purple



WKSW456-1M/5D M12 TBC Female Right Angled 1 Purple
WKSW456-2M/5D M12 6914209 Female Right Angled 2 Purple
WKSW456-3M/5D M12 TBC Female Right Angled 3 Purple
WKSW456-4M/5D M12 TBC Female Right Angled 4 Purple
WKSW456-6M/5D M12 TBC Female Right Angled 6 Purple
WKSW456-10M/5D M12 TBC Female Right Angled 10 Purple
WKSW456-15M/5D M12 TBC Female Right Angled 15 Purple
WKSW456-20M/5D M12 TBC Female Right Angled 20 Purple
WKSW456-25M/5D M12 TBC Female Right Angled 25 Purple
WKSW456-30M/5D M12 TBC Female Right Angled 30 Purple







M12 Cordsets, Connector on One End Only

DP Cable Type 458





Type 458 is a standard Profibus DP Cable, highly stranded for torsional flexibility with drain wire and PUR Exterior.

It has an Aluminium Foil Shield and a Copper Braid Shield

Cross Section 2 x 0.34mm˛. External Cable Diameter 8.5mm

Type Size Indent No M/F Design Cable Length Outer Colour Design
RSSW458-1M/5D M12 TBC Male Straight 1 Purple



RSSW458-2M/5D M12 6602494 Male Straight 2 Purple
RSSW458-4M/5D M12 6603876 Male Straight 4 Purple
RSSW458-5M/5D M12 6602495 Male Straight 5 Purple
RSSW458-6M/5D M12 6602064 Male Straight 6 Purple



RSSW458-8M/5D M12 6603877 Male Straight 8 Purple
RSSW458-10M/5D M12 6602496 Male Straight 10 Purple
RSSW458-20M/5D M12 TBC Male Straight 20 Purple
RSSW458-25M/5D M12 TBC Male Straight 25 Purple
RSSW458-30M/5D M12 6602382 Male Straight 30 Purple
RKSW458-2M/5D M12 6602491 Female Straight 2 Purple
RKSW458-3M/5D M12 6603887 Female Straight 3 Purple
RKSW458-5M/5D M12 6602492 Female Straight 5 Purple
RKSW458-6M/5D M12 6602318 Female Straight 6 Purple
RKSW458-8M/5D M12 6603889 Female Straight 8 Purple
RKSW458-10M/5D M12 6602493 Female Straight 10 Purple
RKSW458-15M/5D M12 6603890 Female Straight 15 Purple
RKSW458-20M/5D M12 TBC Female Straight 20 Purple
RKSW458-25M/5D M12 TBC Female Straight 25 Purple
RKSW458-30M/5D M12 6602322 Female Straight 30 Purple
WSSW458-1M/5D M12 TBC Male Right Angled 1 Purple



WSSW458-2M/5D M12 TBC Male Right Angled 2 Purple
WSSW458-3M/5D M12 TBC Male Right Angled 3 Purple
WSSW458-4M/5D M12 TBC Male Right Angled 4 Purple
WSSW458-6M/5D M12 TBC Male Right Angled 6 Purple
WSSW458-10M/5D M12 TBC Male Right Angled 10 Purple
WSSW458-15M/5D M12 TBC Male Right Angled 15 Purple
WSSW458-20M/5D M12 TBC Male Right Angled 20 Purple
WSSW458-25M/5D M12 TBC Male Right Angled 25 Purple
WSSW458-30M/5D M12 TBC Male Right Angled 30 Purple



WKSW458-1M/5D M12 TBC Female Right Angled 1 Purple
WKSW458-2M/5D M12 TBC Female Right Angled 2 Purple
WKSW458-3M/5D M12 TBC Female Right Angled 3 Purple
WKSW458-4M/5D M12 TBC Female Right Angled 4 Purple
WKSW458-6M/5D M12 TBC Female Right Angled 6 Purple
WKSW458-10M/5D M12 TBC Female Right Angled 10 Purple
WKSW458-15M/5D M12 TBC Female Right Angled 15 Purple
WKSW458-20M/5D M12 TBC Female Right Angled 20 Purple
WKSW458-25M/5D M12 TBC Female Right Angled 25 Purple
WKSW458-30M/5D M12 TBC Female Right Angled 30 Purple







M12 Cordsets, Connector on One End Only

DP Cable Type 455





Type 455 is a standard Profibus DP Cable without drain wire and PVC Exterior

It has an Aluminium Foil Shield and a Copper Braid Shield

Cross Section 2 x 0.34mm˛. External Cable Diameter 8.5mm

Type Size Indent No M/F Design Cable Length Outer Colour Design
RSSW455-1M/5D M12 6602312 Male Straight 1 Purple



RSSW455-2M/5D M12 6603803 Male Straight 2 Purple
RSSW455-3M/5D M12 6602311 Male Straight 3 Purple
RSSW455-4M/5D M12 TBC Male Straight 4 Purple
RSSW455-5M/5D M12 6603806 Male Straight 5 Purple



RSSW455-10M/5D M12 TBC Male Straight 10 Purple
RSSW455-15M/5D M12 TBC Male Straight 15 Purple
RSSW455-20M/5D M12 6602556 Male Straight 20 Purple
RSSW455-25M/5D M12 TBC Male Straight 25 Purple
RSSW455-30M/5D M12 TBC Male Straight 30 Purple
RKSW455-1M/5D M12 6602310 Female Straight 1 Purple
RKSW455-2M/5D M12 6603818 Female Straight 2 Purple
RKSW455-3M/5D M12 6602313 Female Straight 3 Purple
RKSW455-4M/5D M12 6603820 Female Straight 4 Purple
RKSW455-5M/5D M12 6602435 Female Straight 5 Purple
RKSW455-6M/5D M12 6603821 Female Straight 6 Purple
RKSW455-10M/5D M12 TBC Female Straight 10 Purple
RKSW455-20M/5D M12 TBC Female Straight 20 Purple
RKSW455-25M/5D M12 TBC Female Straight 25 Purple
RKSW455-50M/5D M12 6603829 Female Straight 50 Purple
WSSW455-1M/5D M12 TBC Male Right Angled 1 Purple



WSSW455-2M/5D M12 TBC Male Right Angled 2 Purple
WSSW455-3M/5D M12 TBC Male Right Angled 3 Purple
WSSW455-4M/5D M12 TBC Male Right Angled 4 Purple
WSSW455-6M/5D M12 TBC Male Right Angled 6 Purple
WSSW455-10M/5D M12 TBC Male Right Angled 10 Purple
WSSW455-15M/5D M12 TBC Male Right Angled 15 Purple
WSSW455-20M/5D M12 TBC Male Right Angled 20 Purple
WSSW455-25M/5D M12 TBC Male Right Angled 25 Purple
WSSW455-30M/5D M12 TBC Male Right Angled 30 Purple



WKSW455-1M/5D M12 TBC Female Right Angled 1 Purple
WKSW455-2M/5D M12 TBC Female Right Angled 2 Purple
WKSW455-3M/5D M12 TBC Female Right Angled 3 Purple
WKSW455-4M/5D M12 TBC Female Right Angled 4 Purple
WKSW455-6M/5D M12 TBC Female Right Angled 6 Purple
WKSW455-10M/5D M12 TBC Female Right Angled 10 Purple
WKSW455-15M/5D M12 TBC Female Right Angled 15 Purple
WKSW455-20M/5D M12 TBC Female Right Angled 20 Purple
WKSW455-25M/5D M12 TBC Female Right Angled 25 Purple
WKSW455-30M/5D M12 TBC Female Right Angled 30 Purple
