Connectors/Flying Leads

for Namur Plug-in Sensors

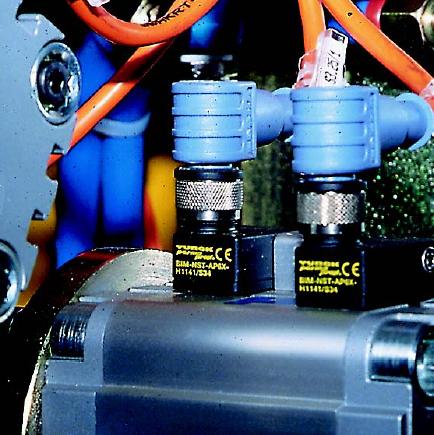

Many of the sensors featured have plug/socket arrangements (identified by "-H1141" or "-H1341" in their part numbers) instead of a fixed flying lead. This enables fast, foolproof and simple replacement of a damaged sensor without reverting to junction boxes or special tools or exposed live cables. The final connection is IP67. Cables are available in PVC (standard) insulation which is strong, chemical resistant and suitable for most applications and in PUR insulation which has extra oil, solvent resistance and flexibility.





Straight Connectors
2-core Blue






Right-Angled Connectors 2-core Blue







Standard Straight Connectors 4-core Grey




Standard Right Angled Connectors 4-core Grey





Field Wireable Connectors 4-pole Grey

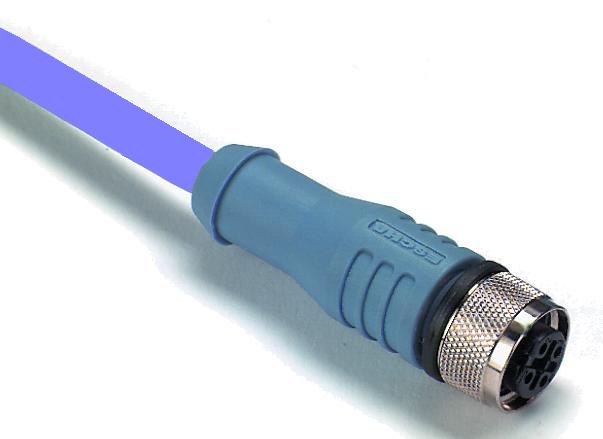

Straight Connectors 2-core Blue Cable

Style Type Cable Length (metres) Insulation Material Cable Cable Colour Image
Straight WAK4.21-2/P00 2m PVC 2 core Blue

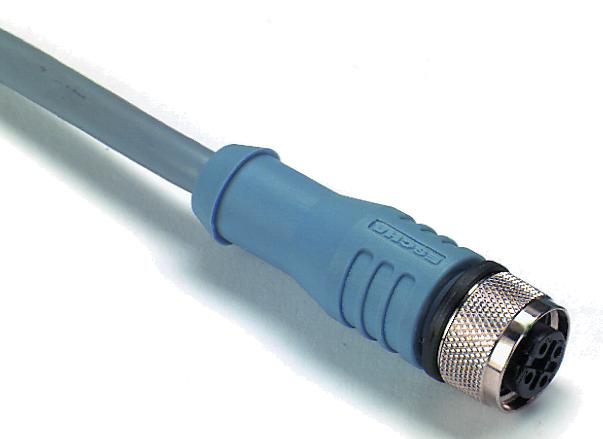

WAK Type

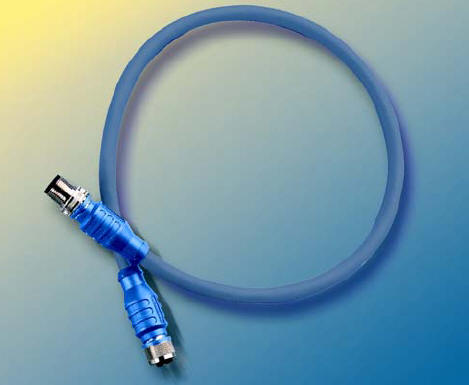

MQD Type

MQD9-406 2m
WAK4.21-5/P00 5m
MQD9-415 5m
WAK4.21-10/P00 10m
WAK4.21-2/PUR 2m PUR
WAK4.21-5/PUR 5m
WAK4.21-10/PUR 10m



Right-Angled Connectors 2-core Blue Cable

Style Type Cable Length (metres) Insulation Material Cable Cable Colour Image
Right-Angled WWAK4.21-2/P00 2m PVC 2 core Blue

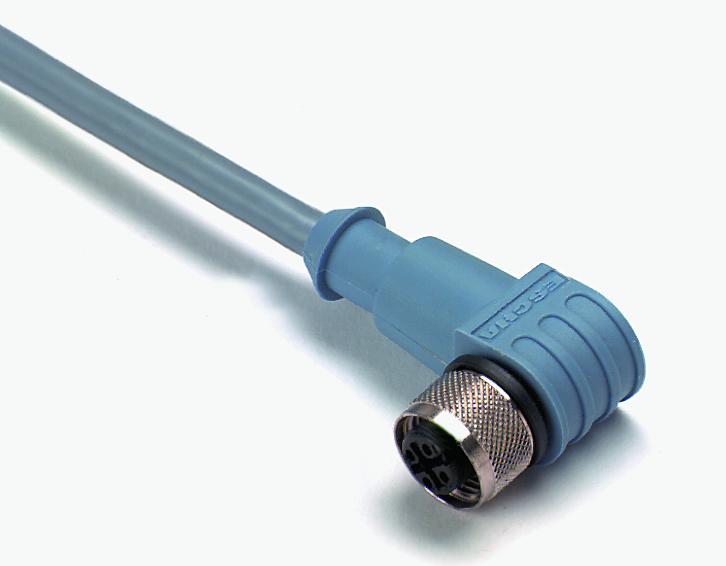

WWAK Type

MQD9...RA Type


MQD9-406RA 2m
WWAK4.21-5/P00 5m
MDQ9-415RA 5m
WWAK4.21-10/P00 10m
WWAK4.21-2/PUR 2m PUR
WWAK4.21-5/PUR 5m
WWAK4.21-10/PUR 10m



Standard Straight Connectors 4-core Grey Cable

Style Type Cable Length (metres) Insulation Material Cable Cable Colour Image
Straight WAK4-2/P00 2m PVC 4 core Grey


WAK4-5/P00 5m
WAK4-10/P00 10m
WAK4-2/P00 2m PUR
WAK4-5/P00 5m
WAK4-10/P00 10m



Standard Right Angled Connectors 4-core Grey Cable

Style Type Cable Length (metres) Insulation Material Cable Cable Colour Image
Right-Angled WWAK4-2/P00 2m PVC 4 core Grey


WWAK4-5/P00 5m
WWAK4-10/P00 10m
WWAK4-2/PUR 2m PUR
WWAK4-5/PUR 5m
WWAK4-10/PUR 10m



Field Wireable Connectors 4-pole

Style Type Cable Length (metres) Material IP Connection Images
Straight H8141-0 (6902500) N/A PBT
(plastic, flame-retardent, chemical & UV resistant)
IP67
poles 1 & 2 only needed for Namur IS Sensors

Right-Angled H8251-0 (6002600) N/A PBT
(plastic, flame-retardent, chemical & UV resistant)
IP67
poles 1 & 2 only needed for Namur IS Sensors
