I.S. Photoelectric Proximity Sensors

- Direct Diffuse

The following are NAMUR intrinsically safe sensors and are powered by a Digital Input Barrier which may be selected by clicking on any link for Digital Input Barrier.

Diffuse direct detecting sensors are manufactured with an light emitter and receiver in a single unit. They are designed to directly detect objects by capturing the small percentage of emitted light that is reflected back to the sensor from the object, without the need for a separate reflector or receiver. The emitted light is projected in a broad (diffused) pattern to give the receiver a wide field of view.
Don't forget to order the plug and lead (cordset) also if ordering a sensor with a connector.


Sensing Distance Model Connection Data Sheet Link Atex Cert Link Housing Images
0 to 75mm MIAD9W 2m Flying Lead

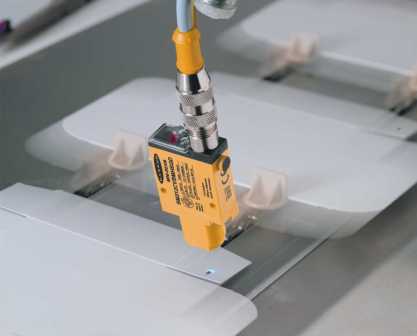

Mini-Beam (Compact Sensor)
0 to 75mm MIAD9WQ M12 Conn
0 to 380mm MIAD9D 2m Flying Lead
0 to 380mm MIAD9DQ M12 Conn
0 to 300mm Q45AD9D 2m Flying Lead
Q45 (Full Size Sensor)
0 to 300mm Q45AD9DQ M12 Conn
0 to 1070mm Q45AD9DL 2m Flying Lead
0 to 1070mm Q45AD9DLQ M12 Conn
