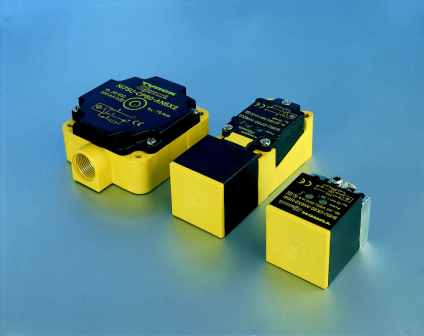

I.S. Inductive Proximity Sensors

 - Rectangular

SELECTION NOTES : Rectangular I.S. Sensors (Namur) come in several different housing styles and shapes to suit your particular application.
Select the sensor you require by first deciding the appropriate sensing distance. Then select the preferred housing style, remembering that this also determines the target size. Note that Ni.. sensors are NOT flush fitting and Bi.. sensors are suitable for flush fitting. Many sensors have led indication. Don't forget to order the plug and lead (cordset) also if ordering a sensor with a connector.Sensors are powered by a Digital Input Barrier which may be selected by clicking on any link for Digital Input Barrier.

Sensing Distance (mm) Part No LED Connection
/Notes
Housing Type
(See Below)
Switching Frequency (kHz) Data Sheet Links Atex Cert Links
15 Bi15-CP40-Y1X Y T/Box CP 40 0.15
15 Bi15-CP40-Y1X/S100 Y T/Box
T= +100
oC
CP 40 0.15
15 Bi15-CP40-Y1X/S97 Y T/Box
T= -40o
C
CP 40 0.15
15 Bi15-CK40-Y1X-H1141 Y M12 Connector CK 40 0.15
20 Ni20-CP40-Y1X Y T/Box CP 40 0.15
20 Ni20-CP40-Y1X/S100 Y T= +100oC CP 40 0.15
20 Ni20-CP40-Y1X/S97 Y T= -40oC CP 40 0.15
20 Ni20-CK40-Y1X-H1141 Y M12 Connector CK 40 0.15
40 Ni40-CP80-Y1 N T/Box CP 80 0.1
40 Ni40-CP80-Y1/S97 N T/Box
T= -40oC
CP 80 0.1
40 Ni40-CP80-Y1/S100 N T/Box
T= +100oC
CP80 0.1
50 Bi50-Q80-Y1X Y 2m Cable Q80 0.1
50 Ni50-K90SR-Y1 N T/Box K90SR 0.1
60 Ni60-Q80-Y1X Y 2m Cable Q80 0.1



Housing Styles

CP40
CK40

CP80

Q80
  K90SR

Click here to download full catalogue.ии
