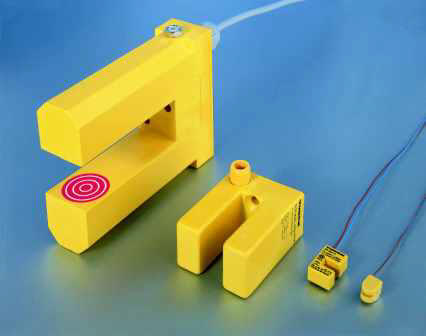

I.S. Inductive Proximity Sensors - Slot


I.S.Slot Sensors (Namur) are used to reliably detect a moving metal strip which passes though the slot in the sensor.
Sensors are powered by a Digital Input Barrier which may be selected by clicking on any link for Digital Input Barrier.


Sensing  Distance (mm) Part No Slot Size
(mm)
Housing Type Switching
Frequency
(kHz)
Data Sheet Links Atex Cert Links Image
2 Si2-K08-Y1 2 K08 2.5
3.5 Si3.5-K10-Y1 3.5 K 10 3
5 Si5-K09-Y1 5 K 09 5
15 Si15-K30-Y1 15 K 30 0.5
15 Si15-K30-Y1X 15 K30 0.5

Click here to download full catalogue
