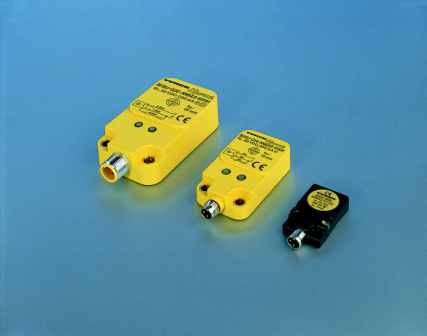

I.S. Inductive Proximity Sensors

 - Compact
SELECTION NOTES : Compact I.S.Sensors (Namur) come in several different housing styles and shapes to suit your particular application. They are very suited to internal valve switchbox or machine mounting. Select the sensor you require by first deciding the appropriate sensing distance. Then select the preferred housing style, remembering that this also determines the target size. Note that Ni.. sensors are NOT flush fitting and Bi.. sensors are suitable for flush fitting.The sensors listed are fitted with a cable/flying lead with the exception of the last one listed.  Sensors are powered by a Digital Input Barrier which may be selected by clicking on any link for Digital Input Barrier.
Sensing Distance Part No Housing Type
(See Below)		 Flush Mountable Switching Frequency (kHz) Datasheet Links Atex Cert Links
1 Bi1-Q6.5-Y1 Q6.5 Y 2
2 Ni2-Q6.5-Y1 Q6.5 N 2
2 Bi2-Q10S-Y1X Q10 Y 2
5 Bi5-Q08-Y1X Q08 Y 1
10 Bi10-Q14-Y1X Q14 Y 1
15 Bi15-Q20-Y1X Q20 Y 1
15 Bi15-Q20-Y1X-H1141 Q20 Y 1



Housing Styles
Q6.5
 		Q08

 Q10

 Q14

 Q20

Click here to download full catalogue.ии
