I.S. Loop-Powered Rate Totalisers


These instruments are available as loop powered, intrinsically safe rate totalisers. When connected in series with a 4-20mA flow transmitter, they will display rate of flow in linear engineering units and simultaneously calculate and display the total flow in the same or different units. The instruments are easily programmed and have a permanent memory so that programme parameters are not lost if the input is disconnected. All are Loop-Powered from the 4 - 20mA Input.

All totalisers are: Certified EExia IIC T5; Field Mounting Models are IP66; Panel Mounting Models are IP65 front and IP20 rear.

Click here for:
Type Mounting Datasheet Link Atex Cert Link Image
BA354D Field

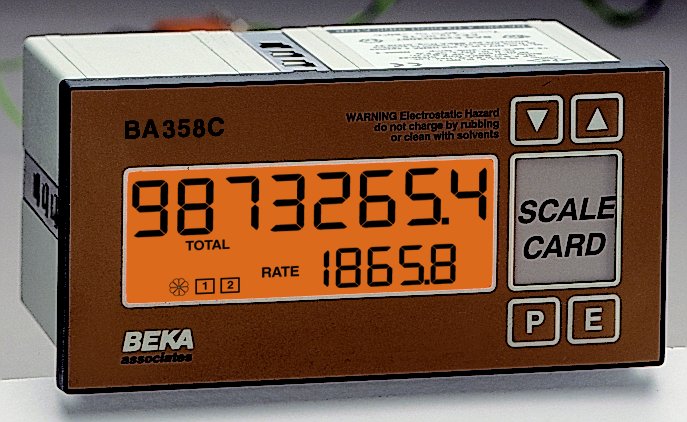

BA358C Panel




Display Details No of Digits Digit Height
Rate Display    5 9.5 mm
Totaliser Display  8  14 mm
