I.S. Pulse Input Rate Totalisers


These instruments are are pulse input, intrinsically safe rate totalisers with separate rate and total displays which may be in the same or different engineering units.They will operate from almost any flowmeter with a switch contact, voltage pulse, magnetic pick off on proximity detector output. Optional alarms, backlight, retransmitted pulse or isolated 4/20mA output further extend the applications.

All totalisers are: Certified EExia IIC T5; Field Mounting Models are IP66; Panel Mounting Models are IP65 front and IP20 rear.

                                                                Click here for:  for BA334D and BA338C

Type Input Power Mounting Datasheet Link Atex Cert Link Image

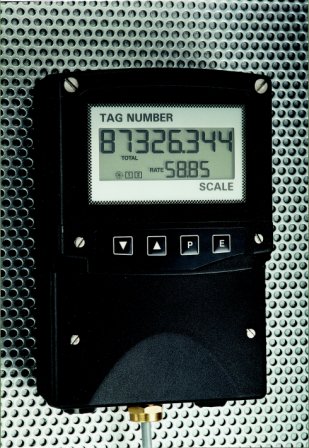

BA344D Pulse Battery Field

BA334D

Pulse External Field

BA338C Pulse External Panel
All Instruments
  No of Digits Digit Height
Rate Display 5 9.5mm
Totaliser Display 8 14 mm
Click here for:  for BA334D and BA338C
