I.S. Indicating Temperature Transmitters


These Indicating Temperature Transmitters provide a simple solution to temperature measurement and display in the hazardous area by building a transmitter into an intrinsically safe indicator. Accepting inputs from most type of thermocouple, millivolt sources and RTDs, the units are loop powered and provide a scalable 4-20mA output. Optional solid state alarms provide high and low trip points if required. For difficult lighting conditions, a backlight option is available. They display the value in Engineering Units and protected by a Transmitter Barrier. Rating 24Vdc 22mA.

The units have a large 20mm, 4.5 digit display and are certified EEx ia IIC T5.
Click here for:


Type

Mounting IP Rating Data Sheet Link Atex Cert Link Image

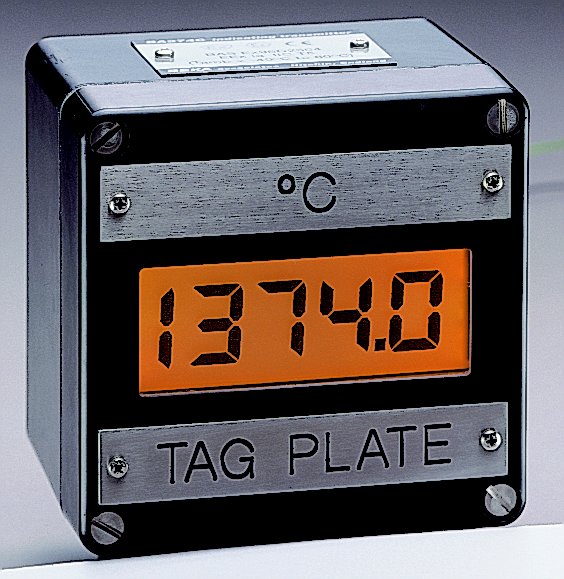

BA374C-0 Field IP66
BA378C-0 Panel IP65 (Front)
Click here for:
